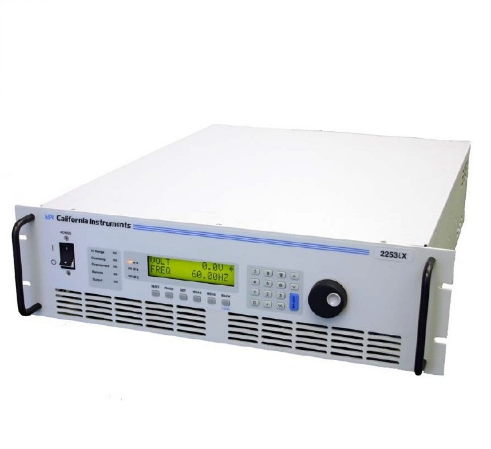

California Instruments 2253i 精密可编程交流电源(2500W-3相,300V,40A)

Voltage:

115V, 1ø input = 1500VA out

230V, 1ø input = 2250VA out

Current:

<20 Arms @ 115 V

<15 Arms @ 230 V

Frequency: 47 to 63 Hz

Power Factor: 0.98 (typical @ full load)

Efficiency: 77%

AC Output

Voltage Hi : 0 - 300Vrms; Low : 0 - 150Vrms

Max. Current: Hi : 3.25Arms (per phase); Low : 6.5Arms (per phase)

Peak Current: Hi : 10 A Peak (per phase); Low : 20 A Peak (per phase)

AC Power: 750VA (per phase)

Phase Output: 3/11,2

Distortion: < 1% THD

DC Output

Voltage : Hi : 0 - 400Vdc; Low : 0 - 200Vdc

Max. Current : Hi : 1.63Adc (per phase); Low : 3.25Adc (per phase)

DC Power: 500W (per output)

Voltage Accuracy/Programming Resolution (AC/DC)

Accuracy (ALC mode ON): 0.1% FS (from 5V to FS)

Programming Resolution: 0.1V

Frequency

Range: 16 – 1000Hz

Resolution:

0.01 Hz (16 – 81.91 Hz),

0.1 Hz (82.0 – 819.1 Hz)

1 Hz (820– 1000 Hz)

Accuracy: 0.025%

Interfaces

USB: Standard

GPIB: Option

RS232: Standard

Please check the datasheet for details
