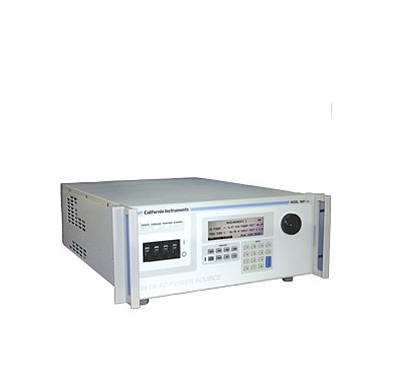

California Instruments 5001iX 交流电源(5000VA,300A,110A)
制造商: Ametek Model: 5001iX 保障: 12 Month - 报价要求
- 联系
Modes: AC, DC
AC Mode Output
Frequency Range: 16.00-1000 Hz
Total Power: 5000 VA
Load Power Factor: 0 to unity at full output VA
AC Mode Voltage
Ranges: VLow: 0-150V; VHigh: 0-300 V
Output Noise (20 kHz to 1 MHz): < 250 mVrms typ.; < 500 mVrms max.
Harmonic Distortion (Linear): < 1% from 16 - 66 Hz, < 2% at 400 Hz, < 3% at 800 Hz (Full resistive load)
DC Offset: < 20 mV External Amplitude Modulation: Depth: 0 - 10 %, Frequency: DC - 2 KHz
Isolation Voltage: 300 Vrms output to chassis
AC Mode Current
Steady State AC Current: 300 V range: 18.5; 150 V range: 37
Peak Repetitive AC Current : High range: 96.0; Low range: 110.0
DC Mode Output
Power (Max at full scale of DC Voltage Range): 3500 W
Voltage Ranges: Range: Low: 200 Vdc, High: 400 Vdc
Line Regulation: < 0.1% FS or 10% line change
Output Noise: < 250 mV rms typ., < 500 mV rms max., (20 kHz to 1 MHz)
Max DC Current (Maximum current at 65% of V Range)
400V range: 13
200V range: 26
AC+DC Mode Output
Output Power: Full AC Power if DC component is less than 20% of full scale voltage, Full DC power if DC component is above 20%
Please check the datasheet for details
