CEM DT-906A 插座极性及漏电测试仪

Datasheet

Features

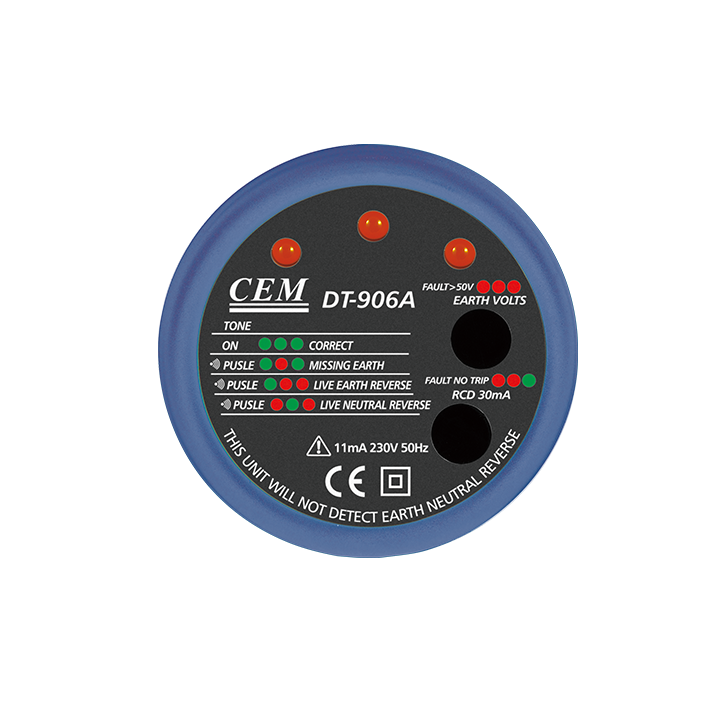

DT-906A is a professional socket tester with modern, ergonomic and durable design, to test the safety of installed mains socket.

DT-906A also checks 30mA RCDs, a unique soft-touch button tests that an RCD in the circuit trips within 300ms when a nominal 30mA earth fault current is applied; a further button, the earth volts touchpad, detects raised earth voltages above 50V AC, thus indicating potentially dangerous installations. Three vivid bicolour LEDs and a buzzer on 906A provide a quick-to-check combination of signals which indicate correct wiring, missing earth, live/neutral reverse, earth/live reverse, missing neutaral, live faults, and those errors detected by the two pushbutton tests.
