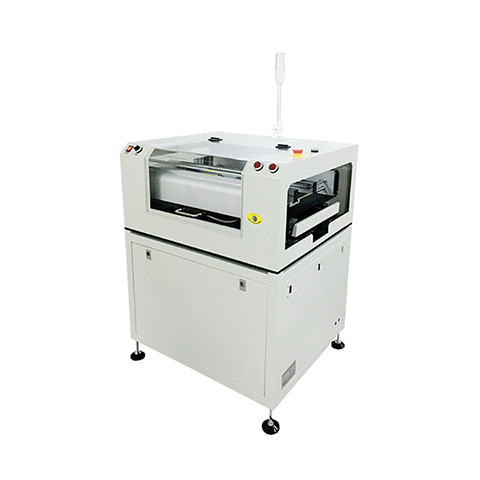

Censtar AC-350W-N PCB Telescopic Conveyor
制造商: Censtar Model: AC-350W-N - 联系
Dimension(mm): 1500*650*1050
PCB size(mm): 50*50-445*350
Quantity of rail: Single rail
Belt type: Oblate belt
Convey speed: 0.5-20m/min or specify
Power supply: AC 220V ; single phase
Power: Max 100VA
Transport height: 900±20(or custimzie)
PCB direction: L-R or R-L
Weight: 200kg
This equipment is used at the junction of the aisle of the production line to play the role of transmission and channel .
1.Lowering and lifting of gate conveyor (controlled by push botton);
2.650mm passage way or specify;
3.Parallel and smooth width adjustment(leadscrew);
4.Safety sensor installed to enhance safety;
5.With SMEMA signal.
