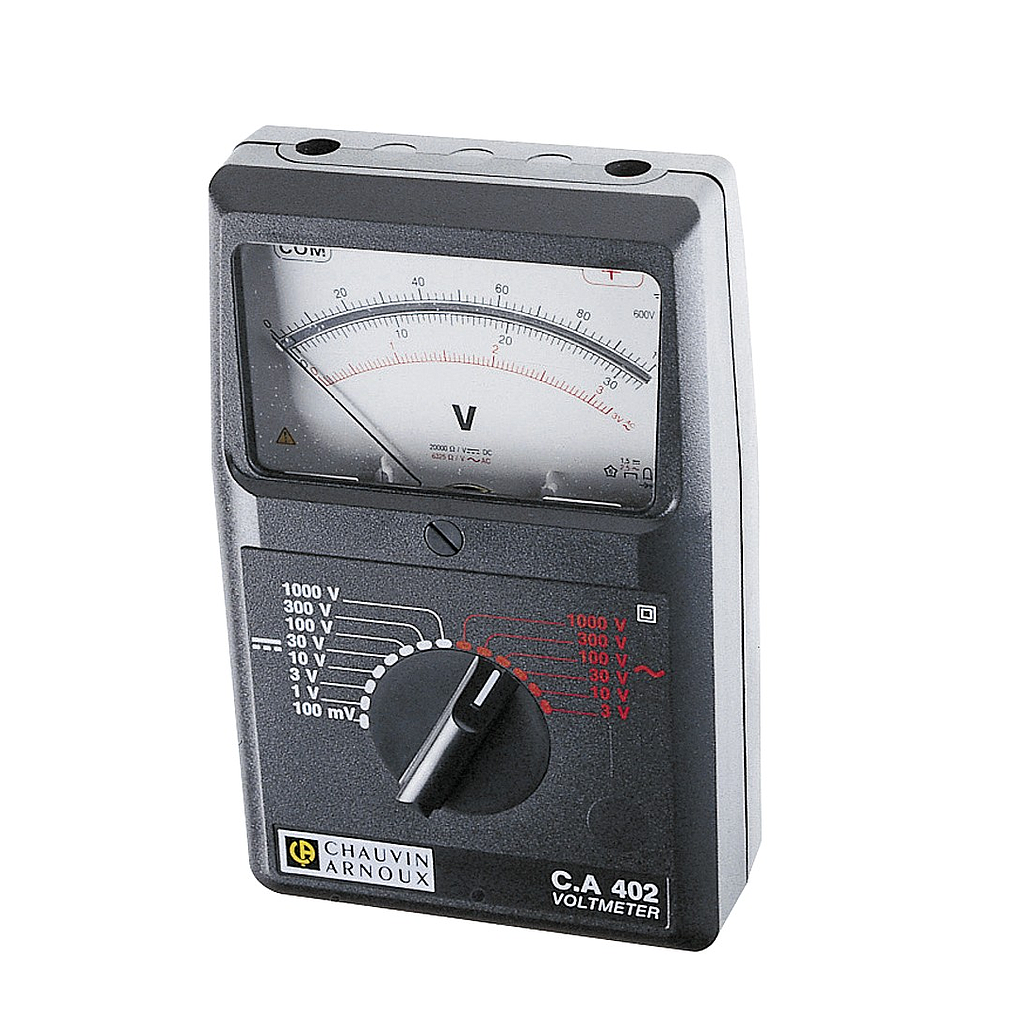

Chauvin Arnoux C.A 402 模拟电压表/ 便携式/ 直流/ 交流 (1000V)
制造商: Chauvin Arnoux Model: C.A 402 P/N: P01170302 来源: France - 报价要求
- 报价要求
- 联系
- Magneto-electric equipment with rectifier
+8 DC ranges: 100 mV to 1,000 V
+6 AC ranges: 3 V to 1,000 V
- Internal resistance: 20 kΩ / V DC and 6.32 kΩ / V AC
- Accuracy
± 1.5 % for DC
± 2.5 % for AC
- Frequency response
+Reference range: 45 to 65 Hz
+Operating range: 20 Hz to 400 Hz
- Dial
+2 black scales (0 to 30 and 0 to 100)
+ 1 red scale for the 3 V AC range
- Dimensions and weight : 165 x 105 x 50 mm – 450 g
- Electrical safety: 600 V CAT III as per IEC/EN 61010-1 Edition 2
Accessories:
- Shockproof sheath P01298016
-Spare fuses (set of 10) 1 A HRC 380 V 50 kA fuse P03297507
+10 A HRC 380 V 50 kA fuse P03297510
+315 mA HRC 380 V 50 kA fuse P03297509
+1.25 A HRC 380 V 50 kA fuse P01297015
+6.3 A HRC 380 V 100 kA fuse P01297016
+3.15 A HRC 380 V 50 kA fuse P01100726
+160 mA 380 V 50 kA fuse P03297508
Description
In the C.A. 400 series of testers for training purposes, the C.A 402 analogue voltmeter is a rugged, simple tool which is extremely safe to use. Perfectly suitable for training purposes and laboratory requirements, the C.A 402 combines accuracy and reliability with extensive electronic and mechanical safety
- 8 DC ranges: 100 mV to 1,000 V
- 6 AC ranges: 3 V to 1,000 V
- internal resistance: 20 kΩ/DC ; 6.32 kΩ/AC
- single switch
- safety sockets
- double insulation
- electrical safety: 600V CAT III as per IEC611010-1 ed2
