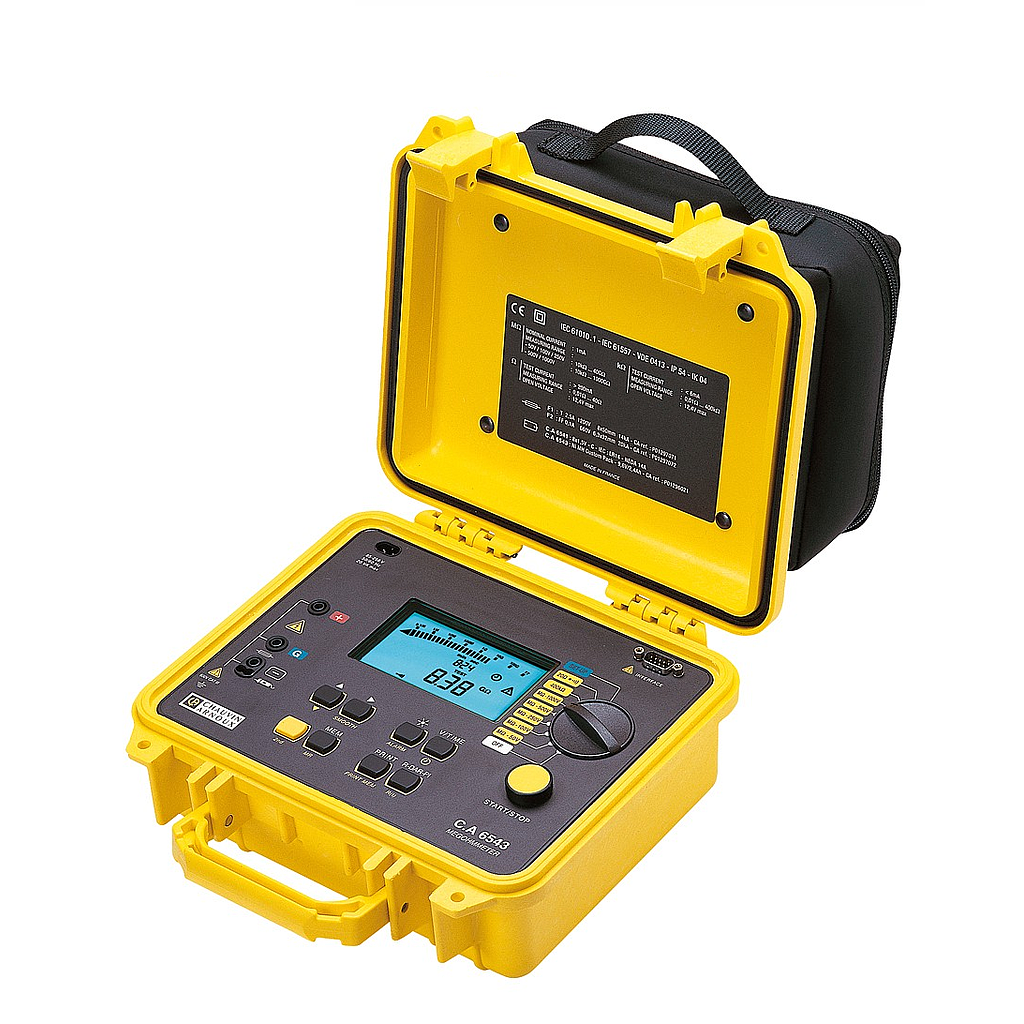

Chauvin Arnoux CA 6543(P01138902)程式数字绝缘测试仪(1000V,4TΩ)

- Saving of measurements Rechargeable battery
- Voltage: 1 to 1,000 V AC/DC
- Insulation: 50 / 100 / 250 / 500 / 1,000 VDC
- Range : 2 kΩ to 4 TΩ
- Continuity: 0.01 to 40 Ω(buzzer + cable compensation)
- Resistance: 0.01 to 400 kΩ
- Capacitance: 0.005 to 4.999 μF
- Alarms: yes
- Smoothed display: yes
- Quality ratios: DAR / PI
- Storage: 128 kB
- Communication: two-way
- Power supply: NiMH rechargeable battery
- Safety: IEC 61010-1 Cat. III 600 V IEC 61557
- Display: giant LCD + bargraph
- Backlighting: yes
- Dimensions: 240 x 185 x 110 mm
- Weight: 3.4 kg
- PC software: Dataview ®(option)

State at delivery: carrying bag containing: 3 leads 1.5 m long (including one shielded), 3 crocodile clips, 1 test probe + batteries or power cable

Detail

datasheet
user guider
catalog vietnamese
catalog english
Description

The C.A 6543 is a 50V to 1kV high-performance insulation tester. It supports extreme site conditions and is an expert tool for qualitative insulation analysis:

  • insulation: up to 4 TΩ (5 ranges) at 50/100/250/500 and 1,000 V DC
  • automatic calculation of insulation quality ratios: DAR and PI
  • programmable test duration and plotting of the R(t) curve
  • automatic indication of voltage before and after measurement: 1 to 1,000 V AC/DC
  • resistance: 0.01Ω to 400 kΩ
  • continuity: 0.01 Ω to +40 Ω (audible beep and cable compensation)
  • automatic capacitance measurement after each insulation measurement: 0.005 to 4.999 µF
  • microprocessor-controlled
  • storage of measurements (128 kB)
  • bi-driectional RS232
  • large LCD screen with digital display and bargraph
  • backlighting
  • SMOOTH function
  • possibility of locking insulation test voltages
  • programmable alarms
  • long battery life thanks to rechargeable battery with internal charger
  • remote control probe available as an option
  • electrical safety: IEC 61010 600V CAT III and IEC 61557
  • dimensions: 240 x 185 x 110mm; weight: 3.4kg
  • large number of optional accessories: remote control probe, MegohmView PC data processing software, printer
