Chauvin Arnoux CA 6608 相位顺序测试仪/ 电动安装/ 数字/ 便携式(P01191304)

Operating voltage: 40 to 850 VAC  between phases
Frequency range: 15 to 400 Hz
Power supply: Self-powered via the measurement inputs
Electrical safety : 600 V CAT III
Dimensions : 130 x 69 x 32 mm/ 130 g

Delivered in a carrying bag containing3 test leads, 3 crocodile clamps, 1 operatingmanual in 5 languages

Detail

datasheet
user guider

Description

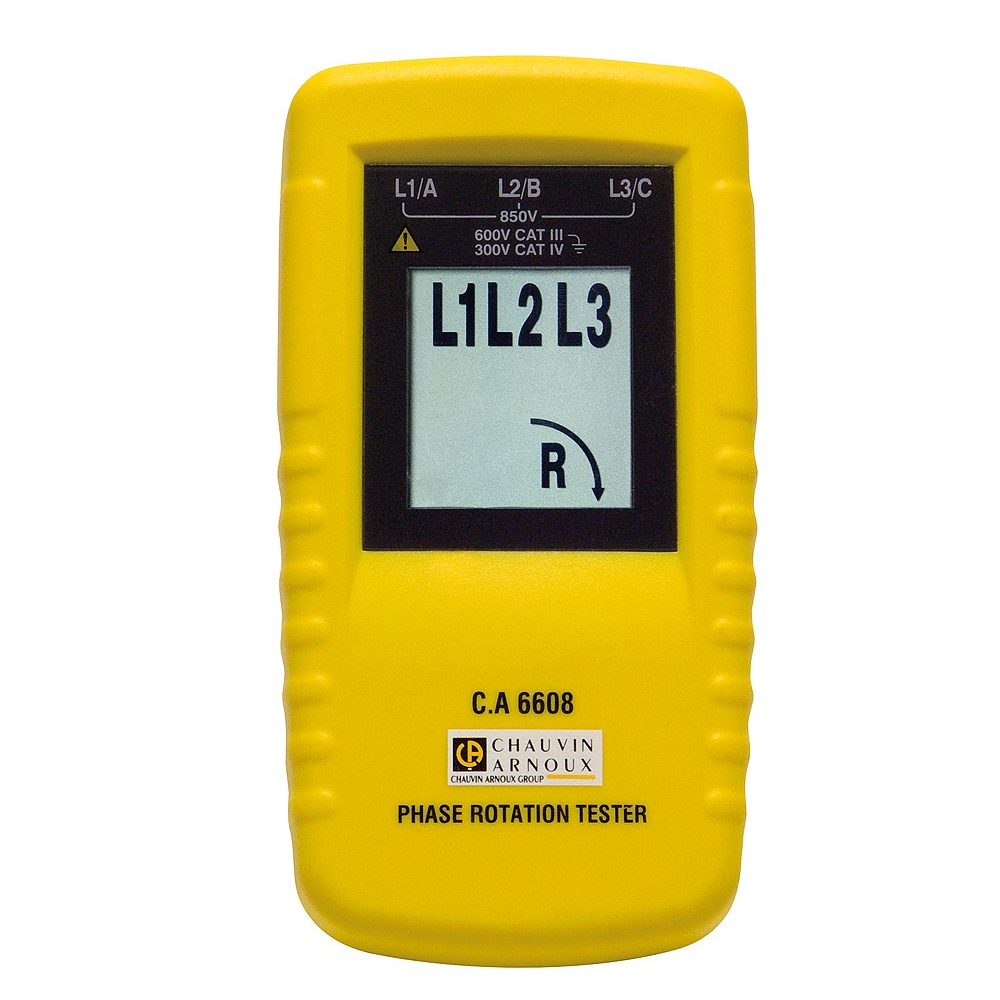

For installation, inspection and maintenance teams, the C.A 6608 phase rotation tester is an essential tool for identifying the order of the phases on an electrical installation and detecting any phase loss.

Identification of the phases makes it easier to ensure correct, safe wiring of your installations, thus preventing damage to the equipment connected to the three-phase network

The phase order is determined as soon as the cables are connected.

The results are displayed on an LCD screen.

Specifications:
Operating voltage: 40 to 850 VAC between phases
Frequency: 15 to 400 Hz
Power supply: self-powered via the measurement inputs
Compliant with IEC 61557-7
Electrical safety: IEC 61010 600 V CAT III
Dimensions/weight: 130 x 69 x 32mm / 130 g
