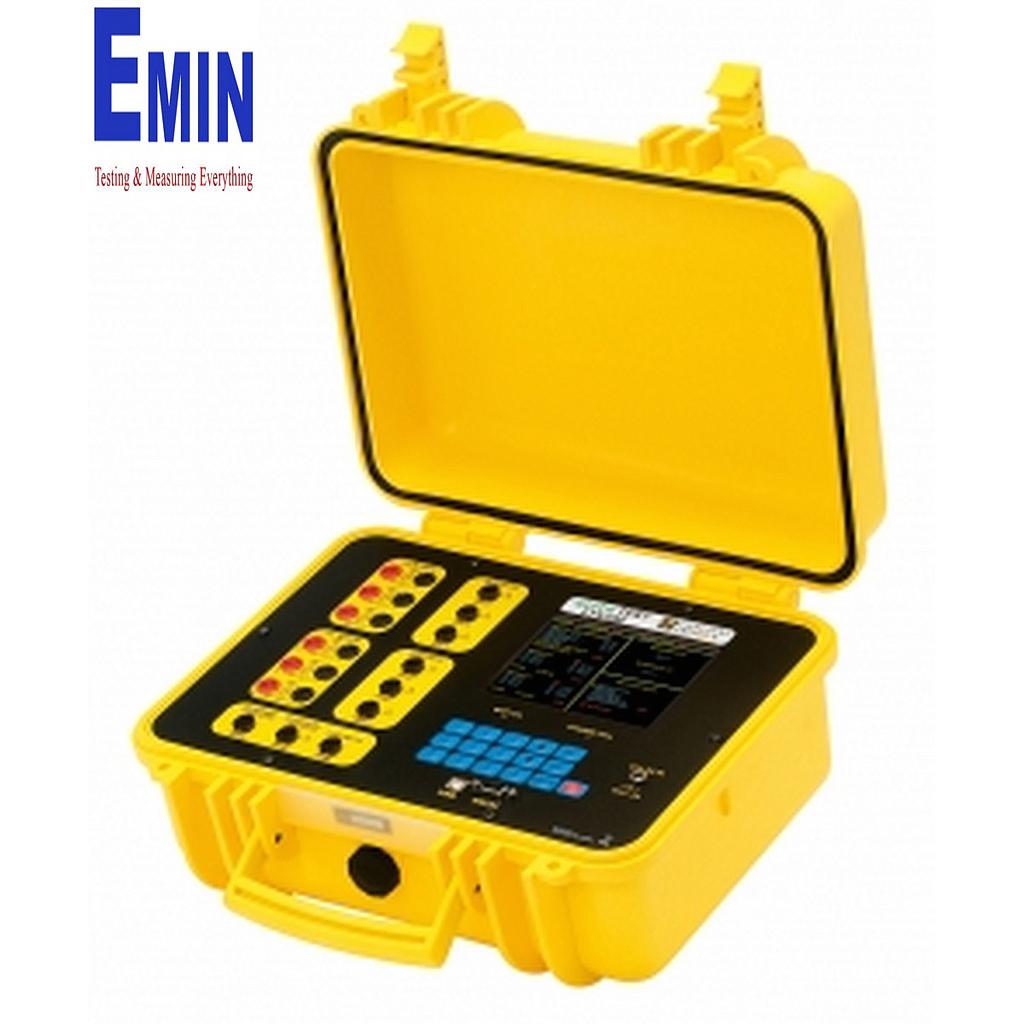

Chauvin Arnoux FTV100 太阳能光伏系统转换效率测试仪

Manuafacturer: Chauvin Arnoux
Model : FTV100
Item: P01160700
Warranty : 12 month

With 1 DC input 1 PAC10-FTV DC + 3 MN-FTV AC type clamps
- Display: Large 5.7” extra-bright digital colour LCD screen (320 x 240) with anti-re˜ ective treatment
Inputs
- Pyranometer
+ Functions: Solar irradiance measurement
+ Range :  2,000 W/m2
+Accuracy: ± 2 %
- Ambient temperature
+ Functions: probe for measuring the ambient temperature
+ Range : -30 to +80 °C
+Accuracy: ± 1 % ± 1 °C
- Temperature
+ Functions: Pt 100 probe for measuring the temperature of the solar panels
+ Range : -30 to +120 °C
+Accuracy: ± 1 % ± 1 °C
- DC voltage
+ Functions: 1 to 3 inputs
+ Range : 1,000 VDC
+Accuracy: ± 1 %
- DC current
+ Functions: 1 to 3 inputs
+ Range : 1,400 ADC
+Accuracy: ± 1 %
- AC voltage
+ Functions: 1 to 3 inputs
+ Range : 600 VAC
+Accuracy: ± 1 %
- AC current
+ Functions: 1 to 3 inputs
+ Range : 3,000 AAC
+Accuracy:  ± 1 %
Functions
- AC/DC power: 20,000 WDC / 1,200 WAC . Accuracy: < 2 %
- Calculation functions: efficiency of solar panels with compensation modules’ temperature coeficient. ency of DC / AC conversion by the inverter
- Data recorder: Up to 10 instrument con‡ gurations can be pre-recorded  in the memory (measurements and measurement results)
General Speci”cations
- Communication:  RS232 (to remote unit)+ USB (to PC)
- Internal power supply: Built-in Li-Ion rechargeable battery (4.5 Ah) / Battery life 8h
- External power supply:  Via 220 VAC – 50 Hz external power supply
- Protection: IP67 closed / IP54 open
- Electrical safety: IEC 61010-1 - 600 V CAT IV – 1,000 V CAT III
- Dimensions / Weight: 360 x 304 x 194 mm / 3 kg (with battery)

Delivered with IP67 site-proof case, 1 pyranometer for insolation measurement with 5 m cable, 1 Pt100 probe for ambient temperature with 3 m cable, 1 Pt100 probe for panel temperature with 3 m cable, 3 AC current clamps (MN-FTV) with 3 m cable, 1 DC current clamp (PAC10-FTV) with 3 m cable, 4 x 3 m leads with test probes, 1 rechargeable battery with mains adapter, data processing software, 1 carrying bag, 1 certi‡ cate of conformity, 1 SIT calibration certi‡ cate for the pyranometer.
Accessories
- 3-DC-input installation measurement kit  P01160710: Delivered with 2 PAC10-FTV current clamps and 3 m cable, 2 sets of leads with test probes (3 m)
- GREENTEST FTV100 REMOTE Unit  P01160736: Delivered with 4 x 1.5 V batteries, 2 male/male RS232 connectors for soldering, 1 fastening strap
- “Cable” communication kit P01160737: 15 m series cable, 9-pin male/male RS232 connectors
- “Bluetooth” communication kit P01160738:  2 Bluetooth adapters (transmitter/receiver), 2 male/female RS232 series cables 20 cm long, adapter programming software
- PAC10-FTV PAC DC clamp (200 ADC)   P01160734
- PAC20-FTV PAC DC clamp (1400 ADC)   P01120092
- MN13-FTV MN AC clamp (200 AAC)  P01160733
- C107-FTV Type C AC clamp (1000 AAC)   P01120337
- D43-FTV Type D AC clamp(3000 AAC)   P01120100
- Set of crocodile clips ø 4 mm (R/N) P01102052Z
- FTV100 battery P01160735
