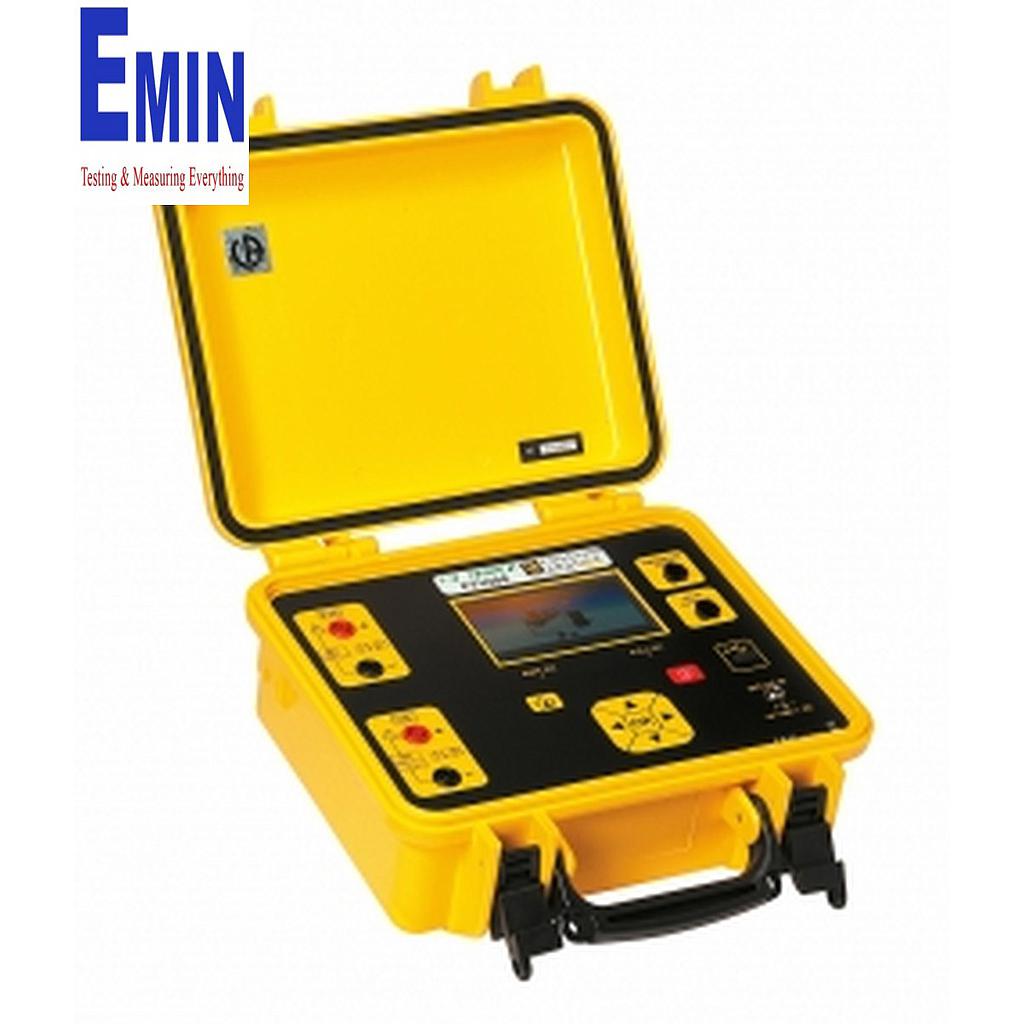

Chauvin Arnoux FTV200(P01160745)太阳能光伏系统转换效率测试仪

Manuafacturer: Chauvin Arnoux
Model : FTV200
Item: P01160745
Warranty : 12 month

Technical Specifications
- Display: 4.3” colour graphic LCD touch screen
- Casing: Site-proof case
- Library: 10,000 curves (with reference values of panels / manufacturer)
Functions
- DC voltage: 10 to 1,000 V
- DC current: 0.1 to 10 A
- Power: 10 W to 10 kW
- Radiation: By pyranometer / 0 to 2,000 W/m² (option P01160730)
- Temperature: By Pt 100 probe, -20 °C to +100 °C (option Probe)
- I-V graph: Display of voltage/current measurement graph per panel or string
- MPP graph: Display of Maximum Power Point (MPP) graph
General specifications
- Communication: USB 2.0
- Power supply / battery life: Mains or Li-ion rechargeable battery pack / 2-hour battery life
- Safety: IEC 61010, CAT III 600 V
- Operating temperature: -5 ° C to +40 °C
- Dimensions / weight: 270 x 250 x 130 mm / 2.5 kg

State at Delivery: Carrying bag, set of 3 m cables, set of MC4 adapters (red/black), cable with MC4/4 mm plug, magnetic stylus for touch screen, USB key, 1 mains adapter, set of flexible test probes, operating manual, PC software and certificate of conformity.

Optional Accessories
- Pyranometre   P01160730
- Pt100 ambient temperature probe   P01160731
- Pt100 contact temperature probe  P01160732
- FTV remote unit  P01160736
- FTV200 Bluetooth communication kit   P01160739
- Carrying bag   P01298066
- USB/RS232 adapter   HX0055
- Inclinometer  P01102115
- Flexible test probes  P01102116

Detail

datasheet
user guider

Advantages

  • Better graphical resolution of I-V curves
  • Larger integrated library of panels
  • More measurements stored
  • Possibility of measuring on all solar panel technologies PV (crystalline, thin-film, etc.)
  • The instrument indicates the result: GO-NOGO
  • Tests and measurements in compliance with the international standards
  • Operation while charging

Description

I-V curves of all types of solar panels

In the field, the FTV200 is ideal for checking solar panels. The FTV200 can be used to carry out tests in compliance with the EN 62446 standard on a panel or string of panels. With the FTV200, all the measurements are performed according to the IEC / EN 60891 standard. To comply with this standard, the inclinometer must be used.


Measurements:

  • I-V curve with cursor
  • Voltage measurement up to 1,000 VDC
  • Current measurement: 10 ADC
  • Pyranometer: up to 2,000 W/m2
  • MPP curve with cursor
  • More than 500 points per curve
  • PMAX power measurement
  • Rs resistance measurement
  • 80 MB internal storage capacity
  • More than 10,000 different panel references
  • Possibility of external USB memory key
  • Bluetooth  communication
