Chauvin Arnoux MA130-250 AmpFlex®柔性探头,用于计量交流电流
制造商: Chauvin Arnoux Model: MA130-250 P/N: P01120663 来源: France - 联系
- Input
+ Very low current: 0.5 A .. 30 A; 0.5 A .. 300 A; 0.5 A .. 3,000 A
+ Low current: 0.5 A .. 30 A; 0.5 A .. 300 A; 0.5 A .. 3,000 A
+ Medium current: 0.5 A .. 30 A; 0.5 A .. 300 A; 0.5 A .. 3,000 A
+ High current: 0.5 A .. 30 A; 0.5 A .. 300 A; 0.5 A .. 3,000 A
+ AC: yes
- Output / Connections
+ Voltage: 3 VAC
+ BNC connector (coaxial): yes
- Specific features
+ Transformation ratio (input/output): 100 mV/A; 10 mV/A; 1 mV/A
+ Power measurement (low phase shift): yes
+ Bandwidth (frequency in Hz): 10 Hz .. 20 kHz; 10 Hz .. 20 kHz; 10 Hz .. 20 kH
+ Typical accuracy: ≤ 1%
Advantages
- Flexible three-phase current sensors
- Battery life: 500 hours
- Measurements from 0.5 A to 3 kA
- IP67, 600 V CAT IV
Description

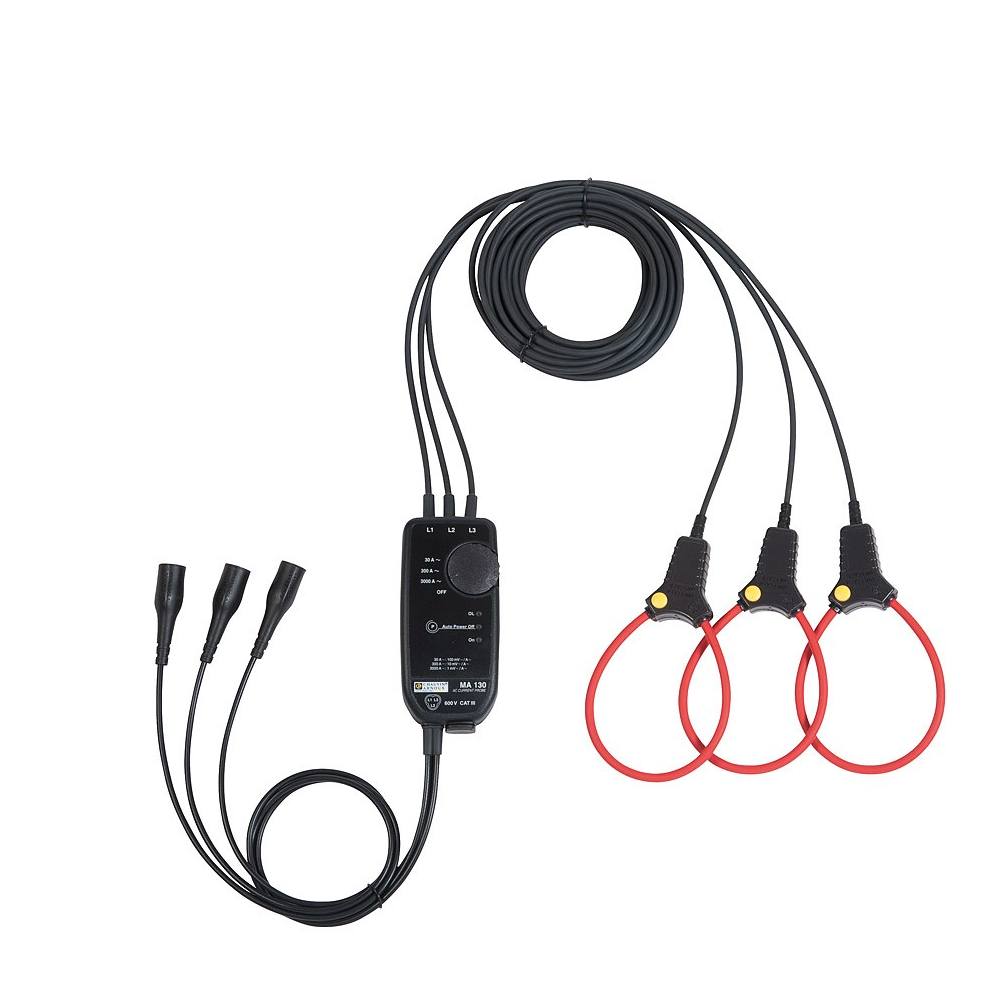

The MiniFlex® MA130 is a flexible current sensor comprising 3 measurement loops. It can be connected directly to a power analyser, logger, etc., to measure 3-phase currents or to perform up to 3 independent current measurements.
These flexible coils offer the following major advantages:
• Current measurement even in places where access is difficult
• Large measurement range
• Bandwidth suitable for industrial frequencies and harmonic analysis
• No saturation effect, so no overheating
• Constant low phase shift appropriate for wattmetric measurements
Main specifications:
• Measurement range: 0.5 A to 3 kA
• 3 calibres
• Sensor length (clamping Ø): 25 cm (Ø 7 cm)
• Ingress protection of sensor/processing unit: IP67 / IP54
• Output signal: AC voltage
• Output via 3 coaxial cables terminated by isolated BNC safety plugs
• Power supply: 2 x 1.5V AA batteries or external µUSB type B 5V
• Battery life: 500 hours
• 600 V CAT IV
