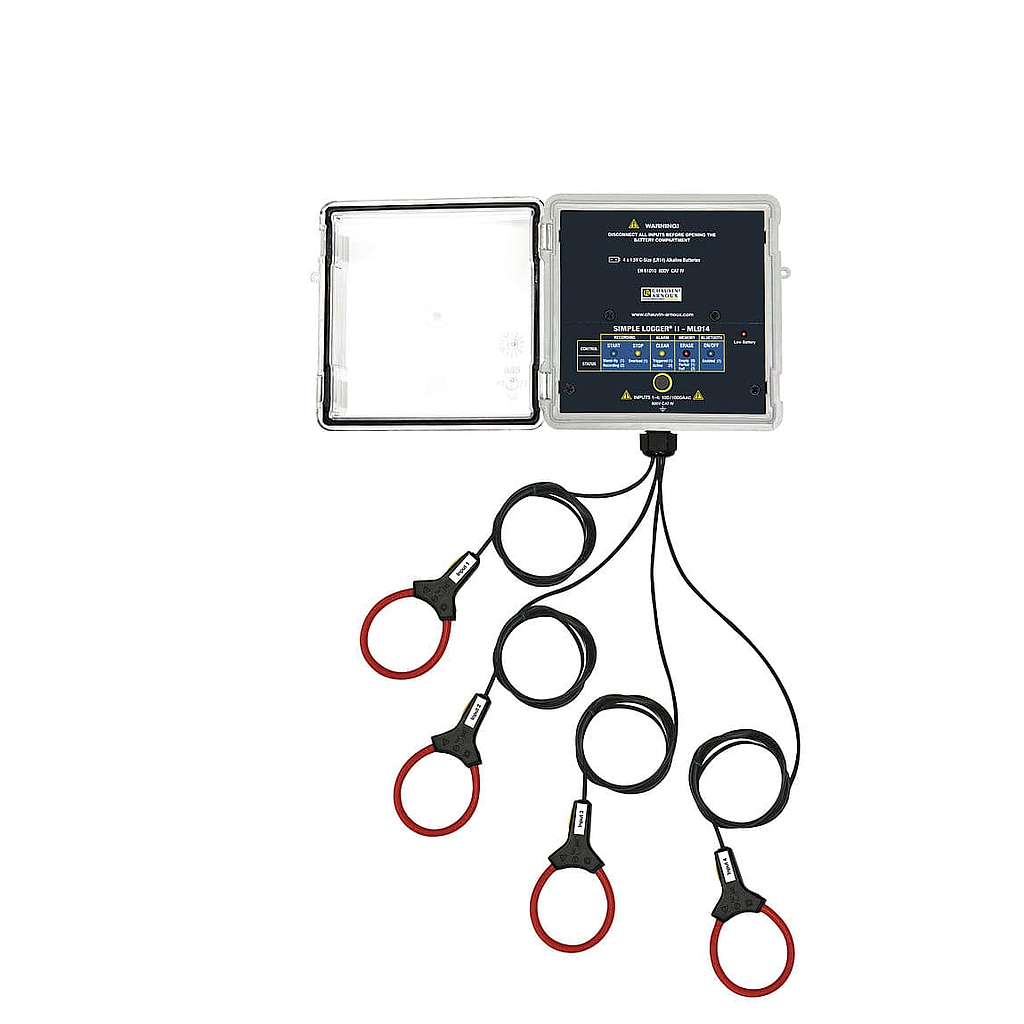

Chauvin Arnoux ML914 电流记录仪4通道1000A (with Flexible Sensors)
制造商: Chauvin Arnoux Model: ML914 P/N: P01157135 - 报价要求
- 联系
Electrical Specifications
Number of channels: 4
Type of sensor: Built-in 6-inch AmpFLEX® sensors
Range: 100 AAC
Accuracy (50 / 60 Hz): 0 to 1 A: not specified1 to 100 A:± (1% R + 0.5 A)
Resolution: 0.1 A AC
Range: 1,000 AAC
Accuracy (50 / 60 Hz): 0 to 5 A: not specified5 to 1,000 A:± (1% R + 1 A)
Resolution: 0.1 A AC
Sampling rate: 64 samples / period
Acquisition interval: Programmable from 125 ms to 1 day
Storage mode: Start/Stop, FIFO, XRM™ extended mode and on
Recording duration: 15 minutes to 8 weeks, programmable using DataView®
Memory: 1,000,000 measurements (2 MB)
Communication: BlueTooth (Class 2)
Power supply: 4 type-C 1.5 V alkaline batteries
Battery life: Up to 180 days
Safety: IEC 61010 600 V CAT IV and 1,000 V CAT III
Mechanical Specifications
Dimensions: 150 x 150 x 91 mm without sensors
Max. elec. conductor size: 45 mm
Weight: 1.1 kg
Casing: IP50
State at Delivery:
One ML 914 delivered with the DataView® software, 4 type-C alkaline batteries,1 multilingual operating manual on CD-Rom and 1 safety datasheet.
Optional Accessories:
DataVIEW® software P01102095
Bag P01298078 A
