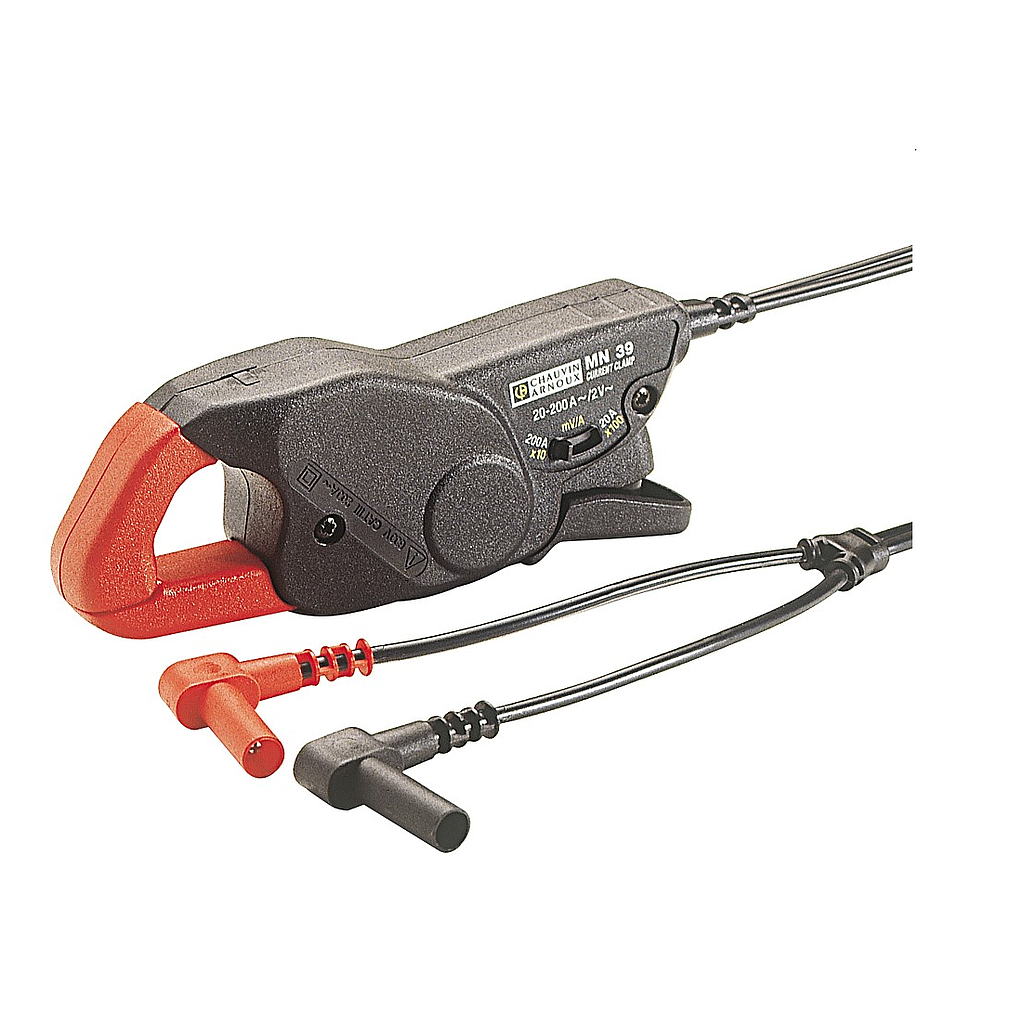

Chauvin Arnoux MN39（P01120408）万用表钳形电流适配器, 交流类型

- Input
+ Low current: 0.1 - 24 A; 0.5 - 240 A
+ Medium current: 0.1 - 24 A; 0.5 - 240 A
+ AC: yes
- Output / Connections
+ Current:
+ Voltage: 2 V AC; 2 V AC
+ Leads + safety plug ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 1A/100mV; 1A/10mV
+ Bandwidth (frequency in Hz): 48 Hz-10 Hz
+ Typical accuracy: ≤1%

datasheet
user guider
catalog vietnamese
catalog english

Description

The MN Series is a range of versatile transformer clamps for measuring alternating currents up to 240 A with a multimeter or a power analyser.

Compact and ergonomic, the jaw is suitable for measurements in places where access is difficult and can also be used to clamp any cable up to 20 mm in diameter in installations up to CAT III 600 V or CAT IV 300 V.
This clamp has 2 sensitivities for better measurement resolution and accuracy.

Main features of the MN39 model:

• Rated current: 200 A AC
• Output signal: AC voltage
• Output / input ratio: 100 mV / A AC, 10 mV / A AC
• Output via lead and isolated Ø 4 mm male plugs
