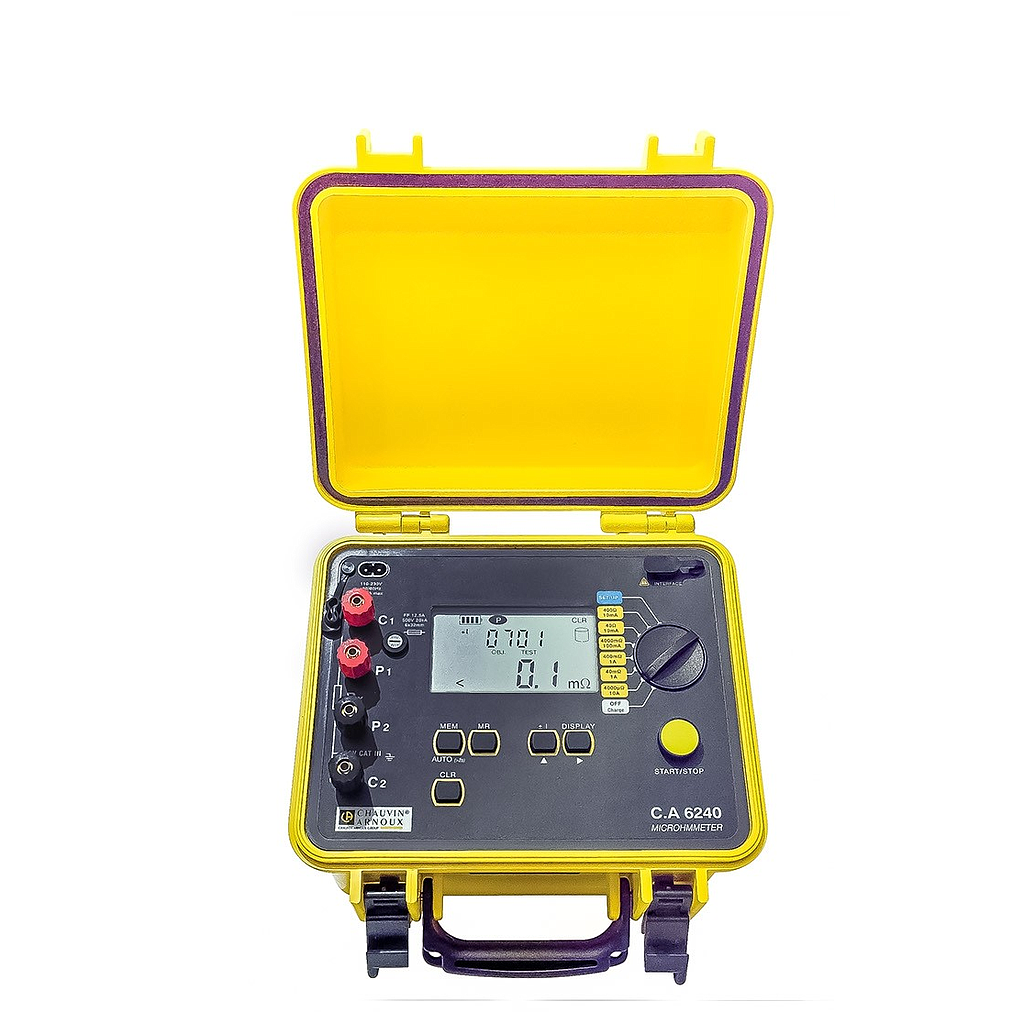

Chauvin Arnoux C.A 6240 便携式数字微欧姆表 (10A)

- Measurement method: 4-wire method
- Resistance: 400 μΩto 400.0 Ω
- Resolution: 1 μΩ
- Accuracy: 0.25 %
- Current: 10 mA to 10 A
- Current inversion: Yes
- Measurement mode: Inductive, non-inductive, non-inductive with automatic triggering
- Temperature compensation: no
- Power supply: NiMH rechargeable battery
- Electrical safety: IEC 61010-1/ Cat III 50 V
- Dimensions: 270 x 250 x 180 mm
- Weight: 4.5 kg

State at delivery:
Mains power lead / leads with Kelvin clamps /software / optical / USB communication cable / bag

datasheet
user guider
catalog vietnamese
catalog english

Description

Rugged and leakproof, the C.A 6240 is a top-of-the-range product designed for on-site, workshop or laboratory use.

It is ergonomic, lightweight and compact.Its wide LCD screen comprising 2 digital displays is particularly easy to read. It includes indications intended to facilitate implementation and interpretation of the measurements. The automatic measurement mode allows measurement to be triggered without pressing a button.
An automatic recording mode is also available.

C.A 6240 technical specifications:
- 4-wire measurement method
- measurement ranges from 400 µΩ to 400 Ω
- Test current up to 10 A
- Max. resolution 1 µΩ
- Automatic power off
- Power supply: NiMH rechargeable battery
- Storage: 100 measurements
- Communication via USB optical link
- Data export software
- IP53 protection
- Electrical safety: IEC 61010-1 CAT III 50 V
- Dimensions: 273 x 247 x 280 mm
- Weight: 5 kg

To make them easier to use and to permit new applications, new retractable 10 A KELVIN test probes are now available as accessories.

"Pistol" test probes
- Handle dimensions 108 x 40 mm, test probe 154 x 30 mm, thickness 28 mm
- Test probe diameter 2 mm
- Test-probe spacing 3.5 mm
- Cable length 3.15 metres
- Spade lugs for Ø 4 to 6 mm
- Safety connectors Ø 4 mm
- Weight approx. 2 x 420 g
Kelvin test probe with rotation
- Dimensions (L x W x H) 207 x 34 x 30 mm
- Test-probe diameter 3 mm
- Test-probe spacing 8 mm
- Test-probe extension/retraction 10 mm
- Cable length 3.15 metres
- Spade lugs for Ø 4 to 6 mm
- Safety connectors Ø 4 mm
- Weight approx. 2 x 400 g
- Resistance 2 x 50 mΩ max.
