Chauvin Arnoux PEL102 MA193 在线电能质量记录仪
制造商: Chauvin Arnoux Model: PEL102 MA193 P/N: P01157150 - 报价要求
- 报价要求
- 联系
- Display: Without
- Installation types : Single-phase, split-phase, three-phase with or without neutral, and many other specific configurations
- Number of channels: 3 Voltage inputs / 3 Current inputs (neutral current calculated)
Measurements
- Network frequency: DC, 50 Hz, 60 Hz & 400 Hz
- Voltage (Measurement ranges/ Best accuracy): 10.00 to 1000 V AC/DC / +/- 0.2 % + 0.5 V
- Current (depending on sensors)(measurement ranges / best accuracy) :from 5 mAAC to 10 kAAC / 50 mADC to 1,4 kADC / ±0.5 %
Calculated measurements
- Ratios: Up to 650,000 V / up to 25,000 A
- Power: 10 W to 10 GW / 10 var to 10 Gvar / 10 VA to 10 GVA
- Energy: Up to 4 EWh / 4 EVAh / 4 Evarh (E = 1018 )
- Phase : cos φ, tan φ, PF
- Harmonics: Up to 50th order
Additional functions
- Phase order: Ye s
- Min / Max: Ye s
- Mounting: Magnet, hook
Recording
- Sampling / Acquisition rate / Aggregation: 128 samples/period - 1 measurement/s – from 1 min to 60 min
- Storage: SD Card, 8 GB (SD-HC Card up to 32 GB)
- Communication: Ethernet & Bluetooth
- Power supply: 110 V - 250 V (+10 %, -15 %) @ 50-60 Hz & 400 Hz
- Safety: IEC 61010 600 V CAT IV – 1,000 V CAT III
Mechanical specifications
- Dimensions: 256 x 125 x 37 mm without sensor
- Weight: 950 g
Casing: IP54 , ETL

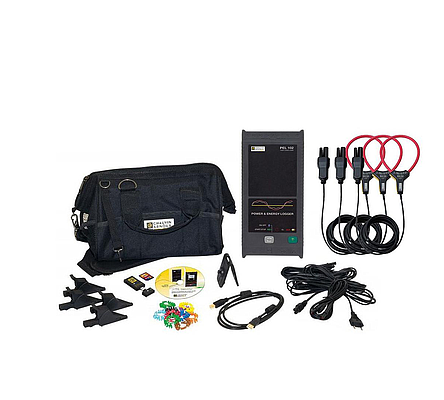

State at delivery: PEL102 , 3 MA193 (250mm, 10kA) 4 measurement leads (straight banana / straight banana – 3 m long – black), 4 crocodile clips (black), 1 SD card (8 GB), 1 set of rings and inserts (for ends of leads and current sensors), 1 mains cable, 1 USB cable (Type A / Type B), 1 MultiFIX mounting systems, 1 operating manual (on CD), 1 bag, 1 safety datasheet, PEL Transfer PC software, 1 quick start-up guide, 1 SD MN adapter (depending on model).
Accessories:
- DataVIEW® software P01102095
-Bag No 23 P01298078
-Leads/clamps kit P01295476
-Set of id. rings/inserts P01102080
-5 A box AP01101959
-PEL100 mains adapter 100P01102134
-MultiFIX P01102100Z
-Mains power cable P01295174
-Reeling Box P01102149
PEL Android application / NEW VERSION V 1.8.25 now including MOTOR measurement applications
datasheet
user guider
catalog vietnamese
catalog english
Advantages
- Single-phase, split-phase and three-phase installations with or without a neutral, as well as other complex configurations.
- Implementation without cutting off the mains power supply
- BlueTooth, Ethernet and USB communication
- Automatic recognition of the sensors connected
- Recording on SD and SD-HC cards
- Real-time communication with a PC and analysis using PEL Transfer
Description
Ergonomic, magnetized and suitable for all types of cabinets, PEL102 loggers provide all the power and energy measurements simultaneously.
Other specifications:
- Voltage up to 1,000 V
- Current up to 10,000 A
- Voltage ratio / current ratio up to 650,000 V / up to 25,000 A
- Power from 10 W/var/VA to 10 GW/Gvar/GVA
- Energy up to 4EWh / 4 EVAh / 4 Evarh
- Phase: cos φ, tan Φ, PF
- Harmonics up to 50th order
- 2 GB SD memory card (SD-HC card up to 32 GB)
