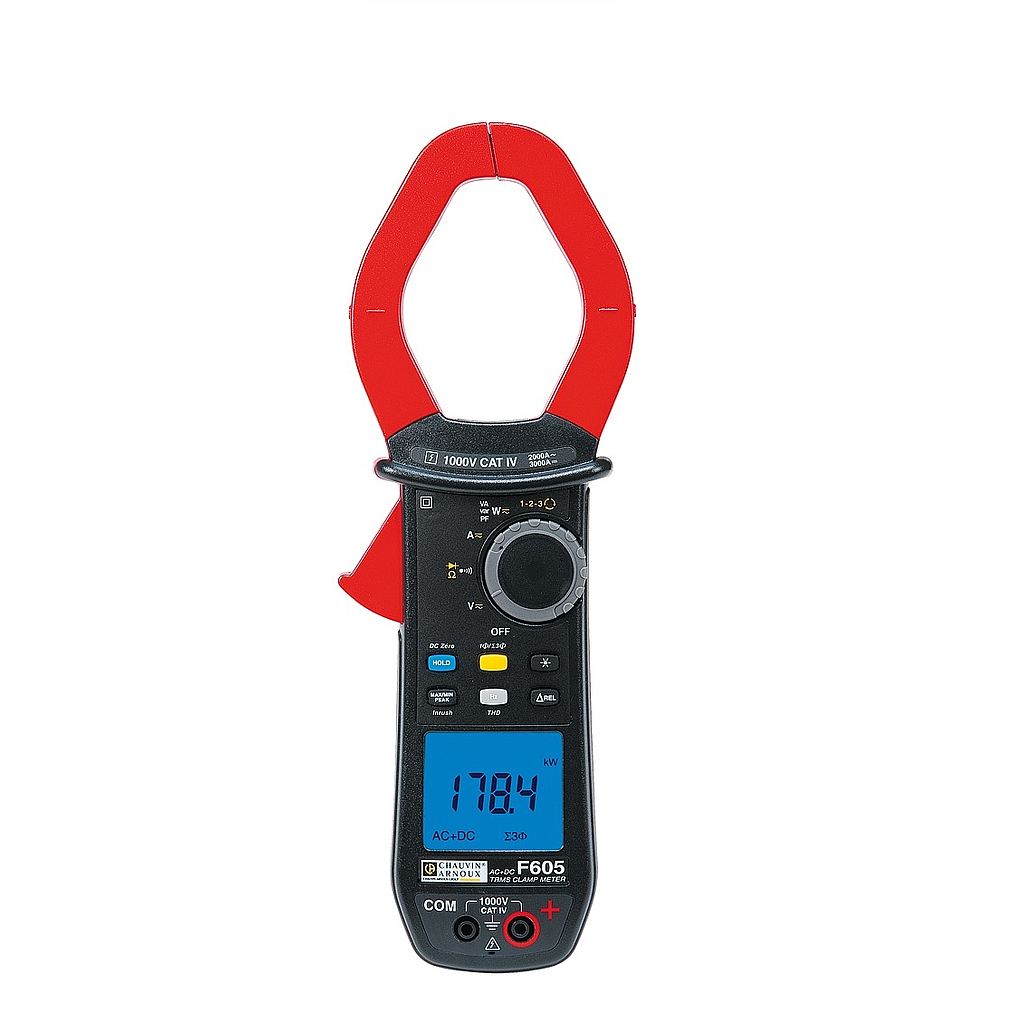

Chauvin Arnoux F605 真有效值AC/DC数字万用钳表 (True RMS 3,000 A)

Discountinued and replaced by F606

Specifications
- Clamping diameter : Ø 60 mm
- Display: Backlit LCD
- Resolution:  10 000 counts
- Number of values displayed : 1
- Type of acquisition: TRMS [AC, AC+DC] /DC
- Autorange function: yes
- Automatic AC/DC detection: yes
- Aac: 2,000 A (3,000 A peak)
- Adc: 3000 A peak
- Aac+dc: 2,000 A (3,000 A peak)
- Best accuracy: 1% R + 3 counts
- Vac: 1000  V
- Vdc: 1400  V
- Vac+dc: 1,000 V (1,400 V peak)
- Best accuracy: 1% R + 3 cts
- Frequency of V / I : Yes / -
- Resistance: 100 kΩ
- Audible continuity: Adjustable from 1 Ω to 999 Ω
- Diode test (semi-conductor junction): yes
- Single-phase and total three-phase power values: yes
- Active (W): yes
- Reactive (VAR): yes
- Apparent (VA): yes
- FP / DPF: yes/ -
- Harmonic analysis THDf/ THDf: yes/yes
Functions
- Overcurrent measurement: yes
- Motor Inrush: yes
- Load evolution (TrueInrush): yes
- Hold: yes
- Min / MAX: yes
- Peak+ / Peak-: yes
- RELative ΔX: yes
- Differential ΔX / X(%): yes
- Auto Power Off : yes
- Electrical safety according to IEC 61010: 1,000 V CAT IV - 1,000 V CAT III
- Power supply : 4 x 1.5 V AA
- Dimensions / Weight: 111 x 296 x 41 mm / 640 g

State at delivery:
- 1 set of PVC cables (black/red)
Ø 4 mm isolated elbowed male banana plug
Ø 4 mm isolated straight male banana plug
- 2 test probes (black/red): Ø 4 mm isolated female plug
- 1 black safety crocodile clip
- 1 x 9 V 6LR61 battery; 4 x 1.5V LR03 batteries for F400/600 clamps
- Multifix bag: 120 x245 x 60 mm for F200 clamps; 120 x320 x 60 mm for F400/600 clamps

Details

datasheet
user guider
catalog vietnamese
catalog english

Description
2,000 A TRMS AC+DC multimeter clamp
With protection against electric shocks up to 12 kV, the F600 Series fulfils the most demanding safety criteria (CAT IV 1,000 V) and offers a high protection rating allowing users to work in total safety on all LV installations.
The F600 Series is ideal for high-power applications such as electrical power distribution, chemical and petrochemical industries, metallurgy, rail transport, etc.
Equipped with a fast 12-bit TRMS digital acquisition system, F605 clamps offer particularly accurate measurements whatever the signal's waveform.
Specifications:
    Clamping diameter: 60 mm
    Current: 2,000 A AC / 3,000 A DC
    AC and DC voltage up to 1,000 V
    Resistance and audible continuity
    Power values (W, var, VA, PF) and harmonics (THDf, THDr)
    "2-wire method" phase rotation
    Automatic AC/DC detection
    TrueInrush current measurement
    Min, MAX, Peak+, Peak-
    RELative (ΔX) and differential (ΔX/X) measurements
    CAT IV 1,000 V
    IP54 protection rating
