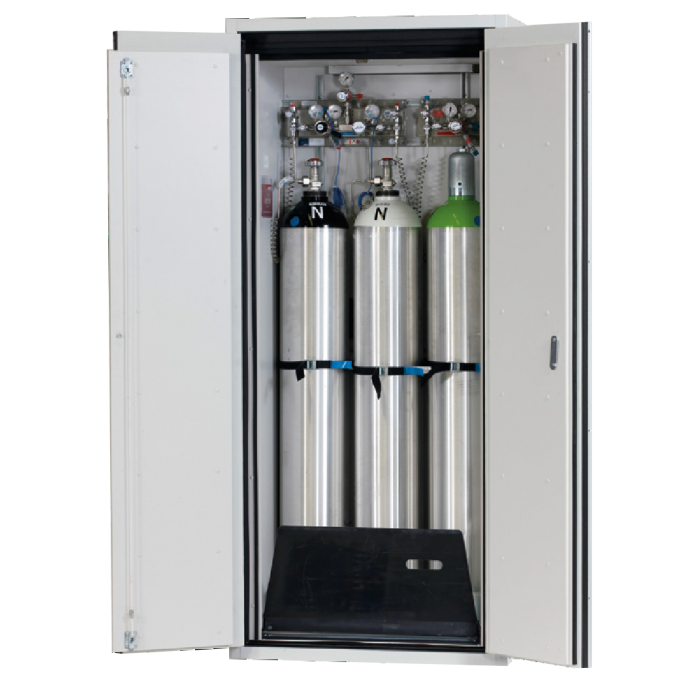

CHC lab G90.205.090 Gas cylinder cabinet (150L)


+ Exterior Dimension (W×D×H, mm) :        898 x 615 x 2050

+ Interior Dimension (W×D×H, mm):        745 x 425 x 1858

+  Depth of the Opened Door (mm):  1089

+  Weight (kg):  490


+  Appropriate Capacity (ℓ):  150

+  Maximum Loading Quanity (EA):  50ℓ × 3EA


Duct Exhaust Connection

The exhaust vent located at the top of the product effectively discharges odors and harmful gases and automatically closes the exhaust vent in the event of a fire to block the outflow of harmful gases to the outside.

Automaticlly Closed Door

A low melting point lead sigeon unit automatically closes the door to prevent secondary damage if a fire occurs and the temperature rises above a certain temperature.

Expandable Interior Material

The expandable interior finish between the door and the frame swells in response to heat in the event of a fire, sealing the gap between the door and the frame and blocking the entry of heat into the cabinet. It keeps the temperature inside constant.

Fire resistant filler double replenishment structure

A double supplement with a fireproof filler between the outer wall and the inner wall blocks the inflow of heat and keeps the temperature of the interior space constant
