Illumination: D/8 (diffused light, 8° reception, SCE/SCI)
Sensor: Photoelectric diode array
Integrating sphere diameter: 40mm
Wavelength range: 400nm – 700nm
Wavelength interval: 10nm
Half bandwidth: <=14nm
Range of reflectance 0-175%, resolution: 0.01%
Light source: Composite LEDs
Measuring time: About 1.5 seconds
Measuring caliber: 4mm
Repeatability: The standard deviation within ΔE*ab< 0.03, the standard deviation within 0.2%
Data storage: 100 x 200 (100 sets of standard samples, up to 200 measurement records under each standard sample)
Power source: Detachable lithium-ion battery pack; DC adapter
Display: 2.8-inch TFT color screen
Accessories: Black and white calibration box
Optional accessories: Mini-printer
High performance-price ratio among similar international products

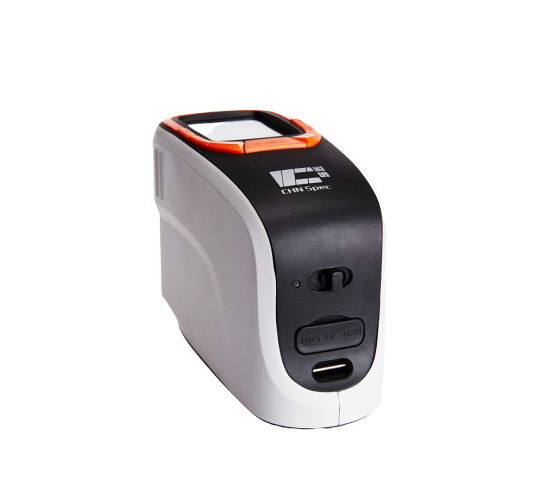

● As China first spectrophotometer,CS-600 integrates multiple innovative technical characteristic ,
and extends the boundary of on-site color quality control during production
● It can be appplied to laboratories,factories and on-site operations,and can achieve the best color management across all application fields quality control;
● Allows quick comparision between two color sample,and shows clear results in numbers or in graphs.
● Allows medium and small companies to obtain high performance color management system with relatively low price;
● The software contains all necessary color equations,standard light sources,and a large number of standards for specific industries and applications;
● Operation system supports both English and Chinese interfaces, and we offer to design the interface in other languages based on the need of our customers.
Professional design, powerful instrument functions
● Professional horizontal design, and it does not have any moving parts,which avoids the shaking of the instrument
during measurement process.This makes the measurement more accurate;
● PC software for easy measurement data management;
● Different measurement cailber for CS-610A and CS-610B. Testing ports for the two intruments are to the left.
● Can measure both SCI and SCE at the same time.
● Large data storage space:can store up to 100 sets of standard samples,with up to 200 measurement records for each standard sample.
● First Spectrophotometer in China
● Modern and fashionable design based on human engineering
● Easy to use operation modes and compact operation interface
● Lage data storage space
● Uses LED light source; has long servise-life
● Energy saving design, high capacity rechargeable lithium-ion battery
● Can measure both SCI (specular included) and SCE (specular excluded) at the same time
● Includes PC software to manage data
● Can connect to mini-printers for printing
