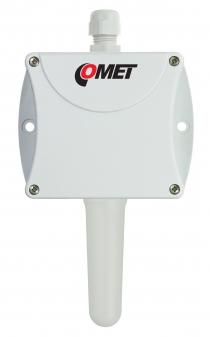

Comet P0210 温度变送器 (15-30 Vdc; 24 Vac, 0-10V)

Measured value: Temperature

Temperature sensor:

   Measuring range: -30 to +80 °C

   Accuracy: ±0.4 °C

   Resolution: 0.1 °C

Operating temperature: -30 to +80 °C

Channels: internal temperature sensor

Output: 0-10 V

Available temperature units: degrees Celsius, degrees Fahrenheit

Configuration of output: user adjustable from PC; measured range + value

Power: 15-30 Vdc; 24 Vac

Protection class: IP65

Dimensions: 88.5 x 148 x 39.5 mm; stem length: 53 mm

Weight: approx. 140 g

Included in delivery:

   P0210

   Instruction Manual

   Traceable Calibration Certificate

   FREE software TSensor for Configuring of the Transmitter

Details

Datasheet


Manual
