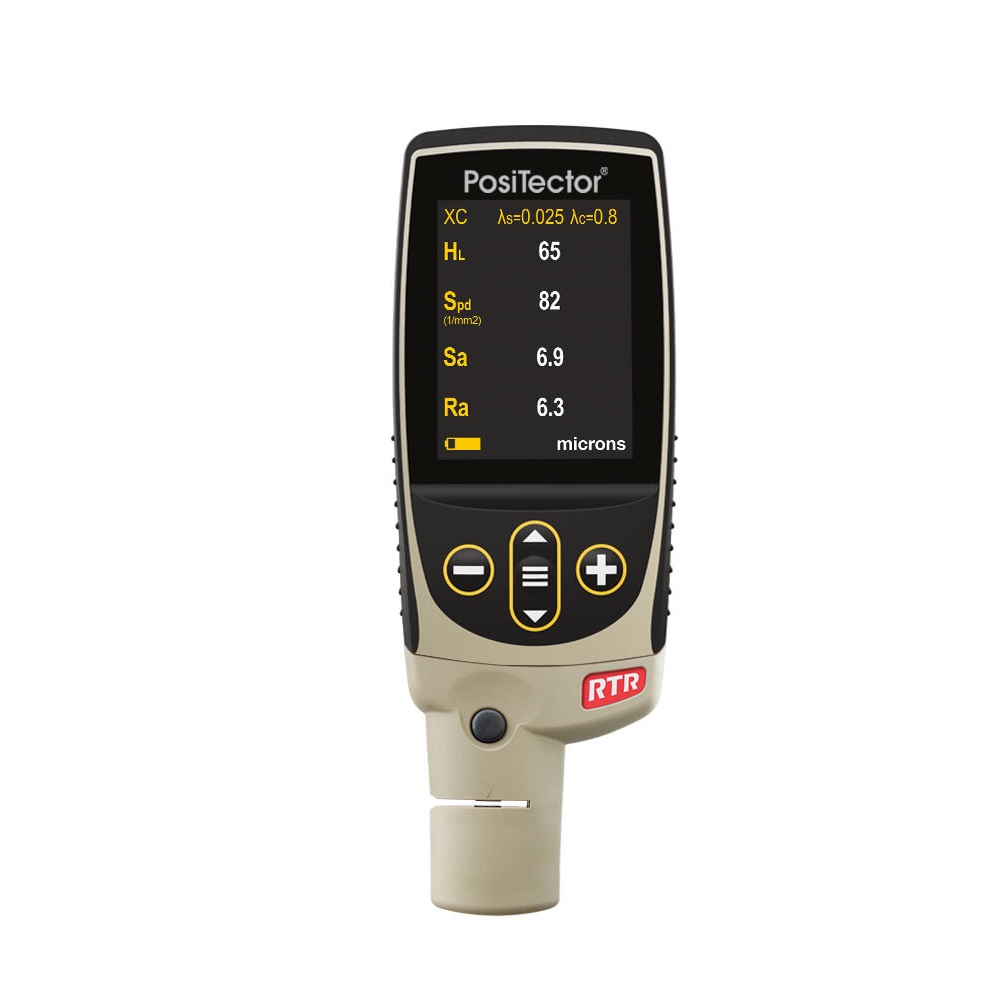

DEFELSKO RTR3D1 Positector 复制式磁带读取器，用于测量和记录2D / 3D表面轮廓参数 (Standard)

Replica Tape Reader to Measure and Record 2D/3D Surface Profile Parameters

Storage of 1,000 readings per probe

Measuring Range (H): 20 – 115 μm / 0.8 – 4.5 mils

Measuring Range (Rt): 10 – 115 μm / 0.4 – 4.5 mils

Minimum Roughness (Ra): 2 μm / 0.08 mil/80 μin

Accuracy (H): ± 5 μm / ± 0.2 mils

Accuracy (Rt)*: ± (5 μm + 5%) / ± (0.2 mils + 5%)

Accuracy (Ra)*: ± (0.25 μm + 5%) / ± (0.01 mils + 5%)

Anvil Pressure: 1.1 Newtons / 110 grams-force

Anvil Size: Ø6.35 mm / Ø0.25 inch

Field of View: 3.8 x 3.8 mm / 0.149 x 0.149 inch

Lateral Sampling: 3.7 μm / 0.145 mils

Vertical Resolution: 100 nm - 2D/3D, 10 nm - SDF / 3.93 μin - 2D/3D, 0.393 μin - SDF

Resolution: 0.1 μm / 0.01 mils

Accessories: stainless steel burnishing tool, burnishing ball, 5 cleaning cards, check shim(s), microfiber cleaning cloth, surface cleaning putty, protective rubber holster, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration (containing Ra and Rt values) traceable to an accredited national laboratory, USB cable, PosiSoft Software.
