● Total dimension: 310×300×580mm
● Input power: single-phase,three-wire AC 220V±10% 50Hz/60Hz
● Output power: DC 24V safety terminal output
● Capacity: < 200VA
● Computer, computer table
● PLC module
● PC software

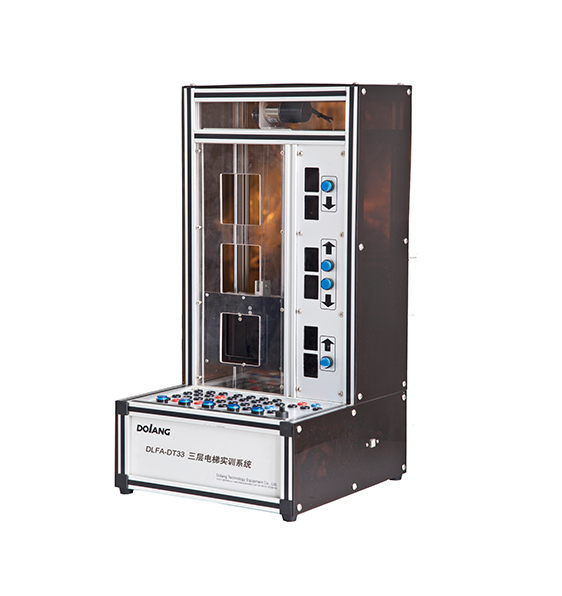

● The device can simulate the work condition of industrial elevator. And complete lift, open-close door.
● The system is composed of operation parts, car, control part, floor indicator and PC interface. Working part contains a variety of industrial transmission device, industrial sensors, which can simulate the real structure of the elevator doors on/off. The control part adopts three control methods: PLC,PC,and MCU,To complete the control of the whole system running.
● On the control panel has PLC control input/output interface and PC communication interface (Without PLC host computer).
