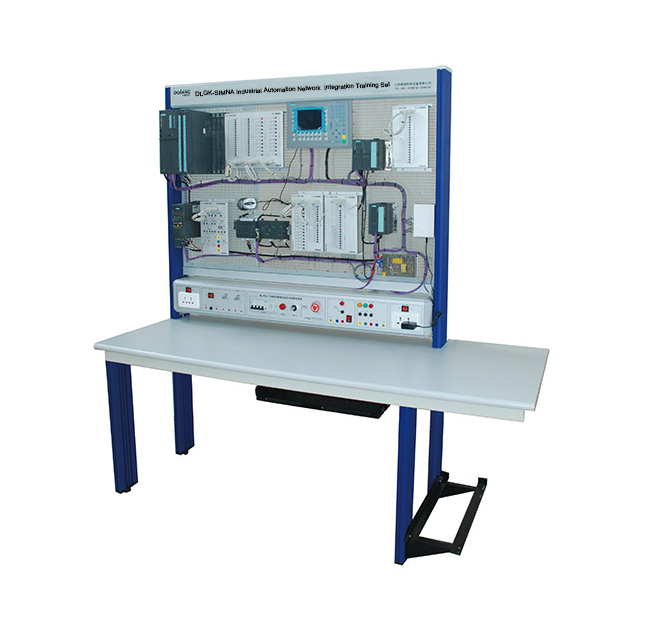

DOLANG DLGK-SIMNA 工业自动化网络一体化培训套装

● The system equipped with Siemens PLC S7-400 as master station, and slave station including Siemens PLC S7-300,PLC S7-200 host, HMI, ET200 and Siemens frequency converter. User may add components freely as required (Control System Optional).

● The system completes follow network: Ethernet network, PROFIBUS-DP, PROFIBUS MPI, USS, PPI, free port communication. And it fulfill Wincc configuration.

■ Technical Parameter

● Total dimension: 1800×700×1675mm

● Input power: three-phase,five-wire AC 380V±10%  50Hz/60Hz

● Output power: AC 380V safety terminal output, AC 220V safety terminal/socket output,

   DC 0-10V safety terminal output, DC 0-20mA safety terminal output

● Capacity: < 1KVA

■ Optional

● Computer

● PC software
