● Total dimension: 1460×602×1700mm
● Input power: three-phase,five-wire AC 380V±10% 50Hz/60Hz
● Output power: AC 220V safety socket output
● Lathe machine parameters:
Workbench moving stroke: X 200mm,Z 250mm
Maximum moving speed of the table: 3000mm/min
Maximum spindle speed: 1400r/min 25W
Lathe machine dimension: 670×450×180mm
● Capacity: < 2KVA
■ Optional (System)
● Siemens system
● Fanuc system
● GSK system
●CNC system adopts Siemens SINUMERIK 802C base line,X-axis,Z-axis are drived by a servo motor,spindle motor is driven by frequency converter.

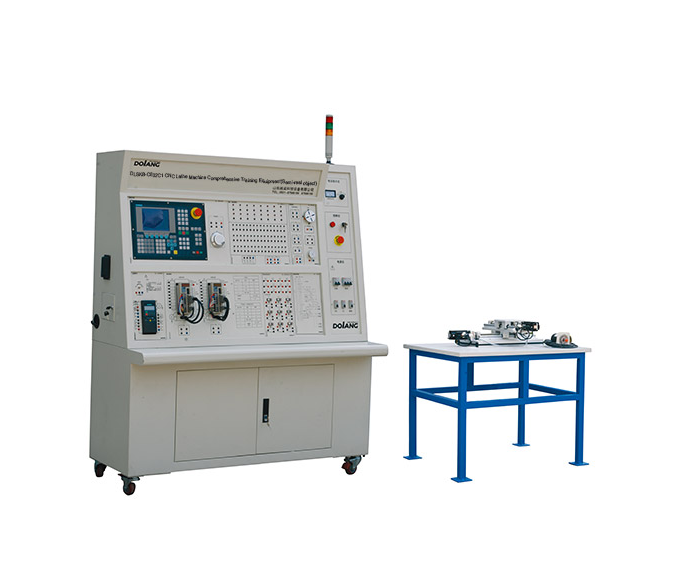

● This device organically combines the machine's electrical parts with mechanical parts,it consists of CNC system,frequency conversion spindle system,electrical control panels,power control section,servo drives control and machine tool semi-physical simulation model,it displays all the action of the machine tool.
● The device can complete a number of teaching and training like CNC system installation,parameter setting,fault diagnosis.
