Input power: three-phase five-wire AC380V ± 10% 50Hz
Working environment: -10 ℃ - 45 ℃, relative humidity <90% RH (25 ℃), altitude <4000M
Device capacity: <1.5KVA
Output power: three-phase AC380V ± 10% 50Hz, single-phase AC220V ± 10% 50Hz DC24V (2 ways)
The general power control with leakage protection, when the leakage current up to 30mA, the protection device action.
Grid voltage instructions with 3 pcs 450V AC voltmeter pointers.

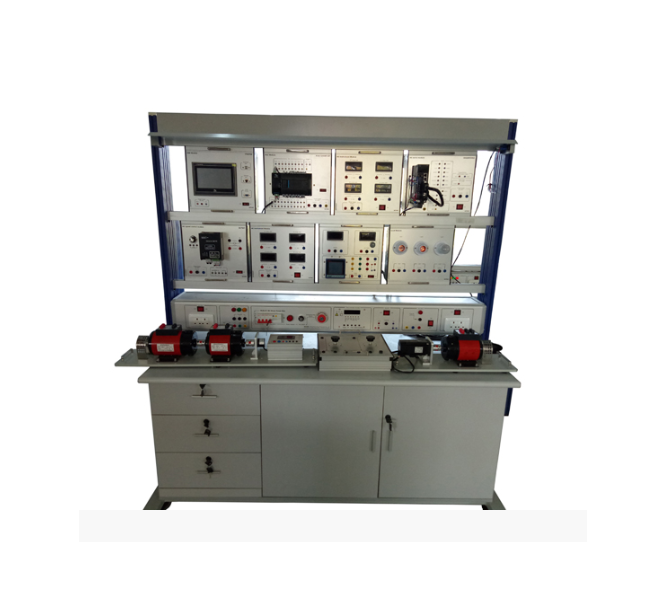

Training bench dimension: length × width × height: 1700 × 700 × 1750mm
DC Motor Training Experiment:
1 Software Installation
2 PLC programming software and programming practice experiment
3 PLC and CANLINK Servo Communication
4 Compound Excitation Motor Electricity-Generating Experiment
5 DC Motor Speed Regulating Experiment
6 DC Motor Electricity Generating Experiment of Motors 2
7 DC Motors 1 and Motors 2 Replace Motor Experiment
The DC motor training system is work process-oriented, motor control as the carrier, respectively, AC servo introduction, commonly used tools and instrumentation, the basic control circuit installation and maintenance of DC motor , The principle of DC motor power and other basic skills to learn situations to achieve a comprehensive understanding of motor control,to improve the practical ability of students
