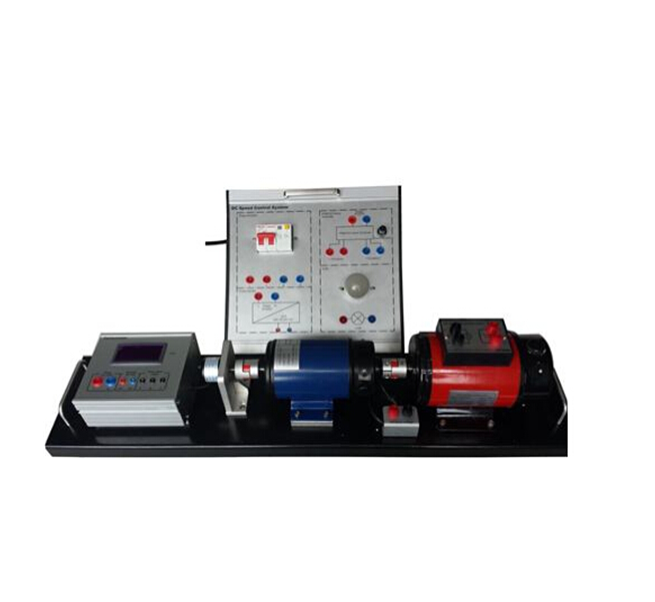

DOLANG DLWD-ZLFD DC 直流电动机起动调速系统

  • 制造商: DOLANG
    Model: DLWD-ZLFD
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




 Technical Parameter

● Input voltage: single-phase, three-wire 220V±10%  50Hz/60Hz

● Output voltage: AC 220V Safety terminal output, AC 24V Safety terminal output

● Adjustable power supply: Armature supply: DC 0-220V 5A, excitation source : DC 220V 2A

● Working environment: ambient temperature range -5~40℃

● Capacity: AC <1.5KVA

● Total dimension: 800 x 200 x 200mm

● Motor parameter

● DC separately excited motor

   Rated power: Pn=185W              Rated voltage: Un=220V

   Rated frequency: Fn=50Hz/60hZ     Rated current: In=1.25A

   Insulation grade: Class E         Rated speed:1500r/min

   Enclosure protection class: IP44

● Permanent magnet motor

   Rated power: Pn=125W        Rated voltage: Un=220V

   Rated frequency: Fn=50Hz    Rated current: In=0.8A

   Insulation grade: Class E       Rated speed: 1500r/min

   Enclosure rating: IP44

Details

Datasheet


DC motors are composed of permanent magnet DC motor, DC separately excited motor, speed measuring device, power supply, speed controller and display devices etc. Dc motors can eithor be combined to training or effect training seperately.It can be used to do both speed mesuring experiment and experiments of DC motor DC power generation.
