用于热电偶EBRO TFN 520的温度计(K,J,T,E型)

Manufacturer: EBRO

Model: TFN 520

Part No.: 1340-5520

Origin: Germany

Warranty: 12 months


1-channel high accuracy thermocouple thermometer

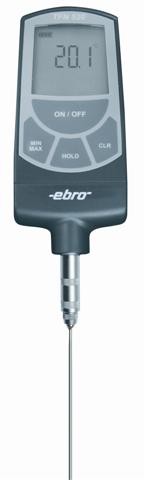

TFN 520 Thermometer for Thermocouples (Type K,J,T,E)- without probe -

Product Description

• Robust and impact resistant

• MIN / MAX

• °C/°F selectable

• Battery indication

• Exchangeable battery


Technical data

Measuring range: Type K -200 °C to +1200 °C Type J -100 °C to +800 °C Type T -50 °C to +300 °C Type E -100 °C to +600 °C

Accuracy: Accuracy @ 25 °C Type K -100 °C to +249.9 °C ±0.3 °C Type J -50 °C to +190 °C ±0.3 °C Type T -50 °C to +220 °C ±0.3 °C Type E -50 °C to +150 °C ±0.3 °C rest of range 0.5% of reading

Resolution: Type K 0.1 ° C at -200 °C to +250 °C Type J 0.1 °C at -100 °C to +190 °C Type T 0.1 °C at -50 °C to +220 °C Type E 0.1° C at -100 °C to +150 °C 1 °C for the rest

Operating Temperature: -5 °C...+50 °C

Storage temperature: -25 °C...+60 °C

Sensor: extern; Thermoelement Typ K, J, T, E

Sample Rate: 0,5s-15s

Probe: LEMO

Measured variables: temperature

IP Rating: IP 40

Battery lifetime: approx. 5 years

Dimensions: 115 x 54 x 22 mm

Weight: approx. 90g

Certificate: Factory calibration certificate
