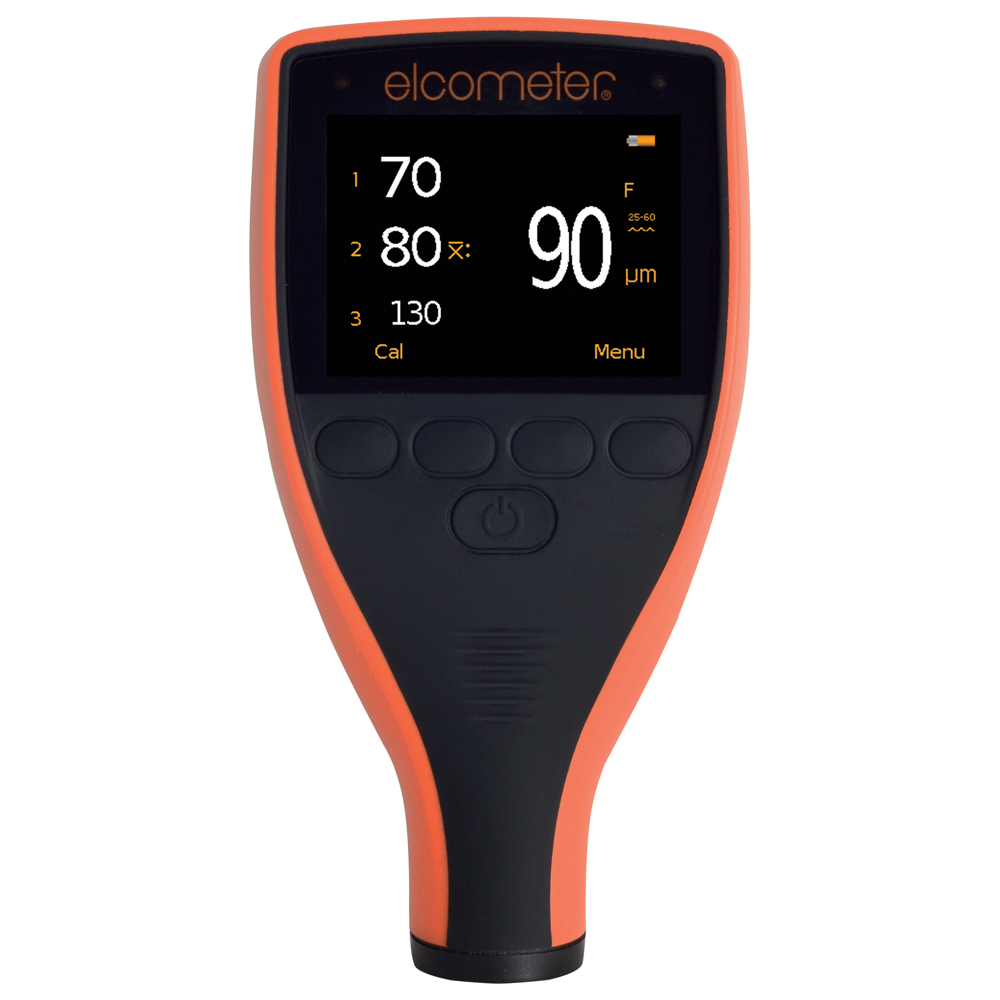

ELCOMETER 456 IPC Dry Film Thickness Gauge (0-4mils)

Pre-calibrated with 4 profile ranges:

Smooth: 0-25µm (0-1mil)

Fine: 25-60µm (1-2mils)

Medium: 60-100µm (2-3mils)

Coarse: >100µm (3-4mils)

Battery Type: 2 x AA batteries, rechargeable batteries can also be used

Battery Life: Alkaline: Approx. 16 hours Lithium: Approx. 24 hours

Gauge Dimensions (h x w x d): 141 x 73 x 37mm (5.55 x 2.87 x 1.46”)

Weight (including batteries): 156g (5.5oz)

Operating Temperature: -10 to 50°C (14 to 122°F)

Packing List: Elcometer 456 IPC Gauge, calibration foils, wrist harness, protective case, 1 x screen protector, USB cable, test certificate, 2 x AA batteries & user guide.
