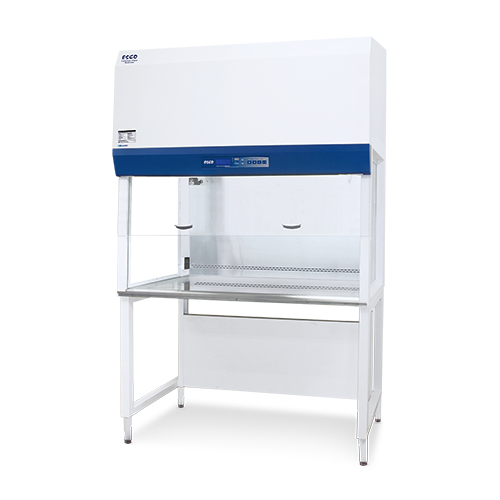

ESCO LVG-6AG-S8 Airstream® Gen 3 Vertical Laminar Flow Cabinet (1880 x 695 x 689 mm, 220-240 VAC, 258W)

Glass Sides

Nominal Size: 1.8 meter

External Dimensions without Base Stand (W x D x H): Sliding Sash Models 1950 x 780 x 1270 mm

Internal Work Area Dimensions (W x D x H): 1880 x 695 x 689 mm

Internal Work Area, Space: 1.3 m²

Average Airflow Velocity: 0.45 m/s (90 fpm) at initial set point

Air Volume: 2177 m³/hr

ULPA Filter Typical Efficiency: > 99.999% at particle size between 0.1 to 0.3 μm

Sound Emission per IEST-RP-CC002.2*: 57.6 dBA

Fluorescent Lamp Intensity at Zero Ambient: 1000 Lux

Electrical Power Rating: 220-240 VAC, 50 / 60 Hz,1 phase

Cabinet nominal power: 258W

Net Weight**: 208 Kg

Specifications are subject to change without notice.

*Noise reading in open field condition / anechoic chamber. Noise reading in normal room varies by room size, layout, and background noise, but may reach roughly 3 dBA above these values.

**Cabinet only, excludes optional stand.
