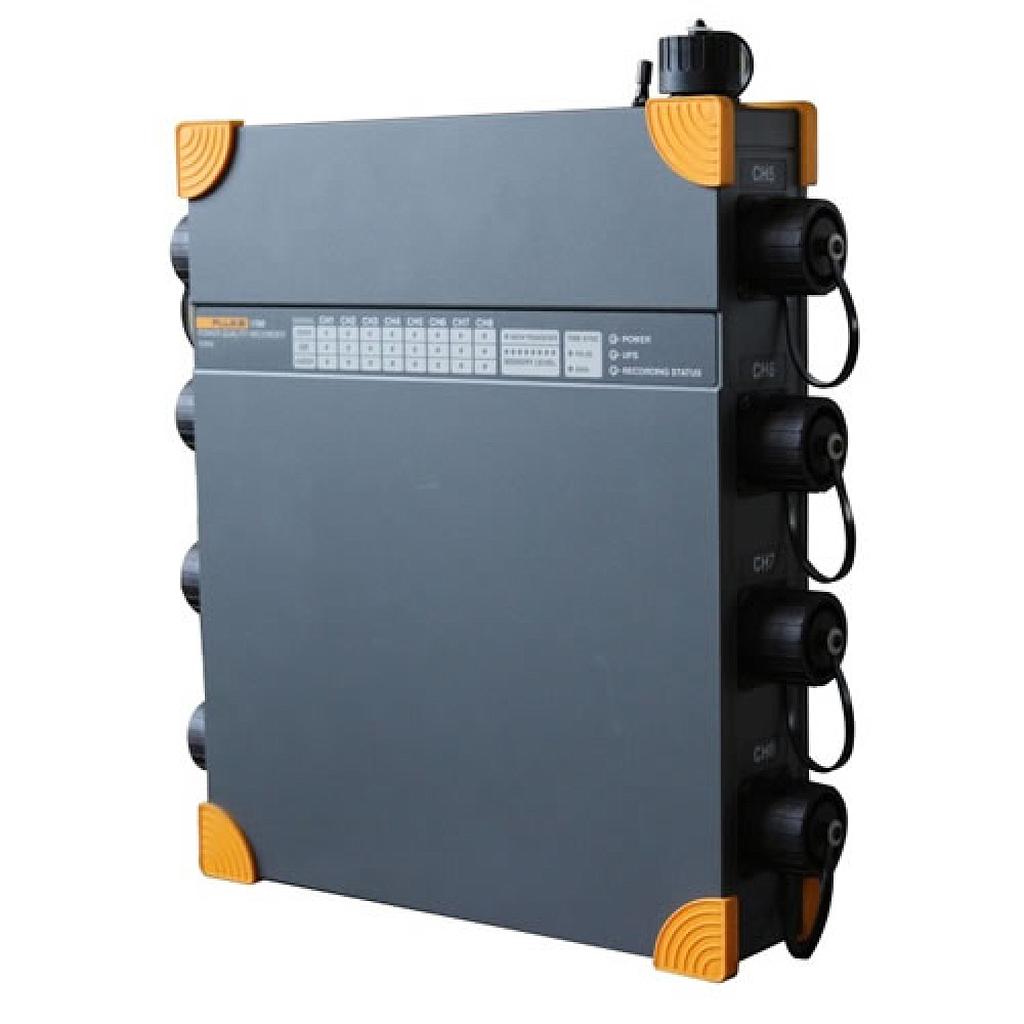

Fluke 1760 三相电能质量记录仪

  • 制造商: FLUKE
    Model: 1760
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




- Continuous Recording: Voltage, current, power P; Q; S, power factor, kWh, flicker, unbalance, frequency, harmonics/interharmornics
- Housing: insulated, robust plastics housing
- Power supply:
+ Range: AC: 83 V to 264 V, 45 to 65 Hz; DC: 100 V to 375 V
+ Safety: IEC/EN 61010-1 2nd edition 300 V CAT III
+ Power consumption: max. 54VA
+ Battery pack: NIMH, 7.2 V, 2.7 Ah
- Display
+ Power LED: Permanent light: normal power supply from mains; OFF: supply via internal accumulator in case of a power failure.
+ Channel LEDs 3-color LEDs per channel for: overload condition, under load condition, signal level in nominal range
- Data memory: 2 GB Flash memory depending on model
- Memory model: Linear
- Interface: Ethernet (100MB/s), compatible to Windows® 98/ME/NT/2000/XP RS 232, external modem via RS 232
- Baud rate for RS 232: 9600 Baud to 115 kBaud
- Signal Conditioning
+ Range for 50 Hz systems: 50 Hz ± 15 % (42.5 Hz to 57.5 Hz)
+ Range for 60 Hz systems: 60 Hz ± 15 % (51 Hz to 69 Hz)
+ Resolution: 16 ppm
+ Sampling frequency for 50 Hz power frequency: 10.24 kHz, The sampling rate is synchronized to mains frequency.
+ Uncertainty for frequency measurements: < 20 ppm
+ Uncertainty of internal clock: < 1s / day
+ Harmonics: as per IEC 61000-4-7:2002: 200 ms
+ Flicker: as per EN 61000-4-15:2003: 10 min (Pst), 2 h (Plt)
- Measurement Inputs
Number of inputs: 8 galvanically isolated inputs for voltage and current measurements.
Sensor safety: up to 600 V CAT IV depending on sensor
Basic safety: 300 V CAT III
Nominal voltage (rms): 100 mV
Range (peak value): 280 mV
Overload capacity (rms): 1000 V, continuously
Voltage rise rate: max. 15 kV / µs
Input resistance: 1 MΩ
Input capacitance: 5 pF

Details

Manual

Overview of Measurement Functions

Statistical Evaluation



 Power quality statistics according to EN50160 and DISDIP tables like ITIC, CEBEMA, ANSI

Event List



 Dips, swells and interruptions are detected and stored in the event list. Also any trigger which fires generates an event added to this list.



 The Event list shows the exact time when the event occurred as well as the duration and magnitude. Sorting by several attributes of these events is possible to select one for further root cause analysis.



 RMS values, transients and fast transients can be stored if a trigger fires.

Continuous Recording



 Fluke 1760 records rms values together with corresponding minimum and maximum values for:



 • Voltage



 • Current



 • Power P, Q, S



 • Power Factor



 • kWh



 • Flicker



 • Unbalance



 • Frequency



 • Harmonics/Interharmonics



 continuously with the following time aggregations:



 Day



 10 min



 Free Interval, e.g.: 15 min, 2h

Triggered Recordings

rms:

 Aggregation time is adjustable between 10 ms (1/2 cycle), 20ms (1 cycle), 200ms (10/12 cycles) or 3 sec (150/180 cycles).



 Calculating rms values, Harmonics and Interharmonics is performed synchronous to the power frequency.



 Basic aggregation for harmonics and interharmonics is 200ms

Oscilloscope:

 Sample rate is 10.24 kHz for all 8 channels

Fast Transients:

 Sample rate is selectable from 100 kHz to 10 MHz for channel 1-4 FFT of Fast Transients

Mains Signalling



 Phases and N-conductor, Voltage and current

Online Mode



 Variable refresh rate. This feature allows verification of instrument set up and delivers a quick overview of oscilloscope, transients and events.



General Data

Intrinsic uncertainty



 refers to reference conditions and is guaranteed for two years

Quality system



 developed, manufactured as per ISO 9001: 2000

Environment conditions

Operating temp. range:

 0 °C to +50 °C; 32 °F to +122 °F

Working temp. range:

 -20 °C to +50 °C; -4 °F to +122 °F

Storage temp. range:

 20 °C to +60 °C; -4 °F to 140 °F

Reference temperature:

 23 °C ± 2 K; 74 °F ± 2 K

Climatic class:

 B2 (IEC 654-1), -20 °C to +50 °C; -4 °F to +122 °F

Max. operating altitude:

 2000 m: max. 600 V CAT IV, power supply: 300 V CAT III 5000 m: max 600 V CAT III, power supply: 300 V CAT II
 depending on sensor

Reference conditions

Environment temp.:

 23 °C ± 2 K ; 74°F ± 2 K

Power supply:

 230 V ± 10 %

Power frequency:

 50 Hz / 60 Hz

Signal:

 declared input voltage Udin

Averaging:

 10 minute intervals

Housing



 insulated, robust plastics housing

EMC

Emission:

 Class-A as per IEC/EN 61326-1

Immunity:

 IEC/EN 61326-1

Power supply

Range:

 AC: 83 V to 264 V, 45 to 65 Hz
