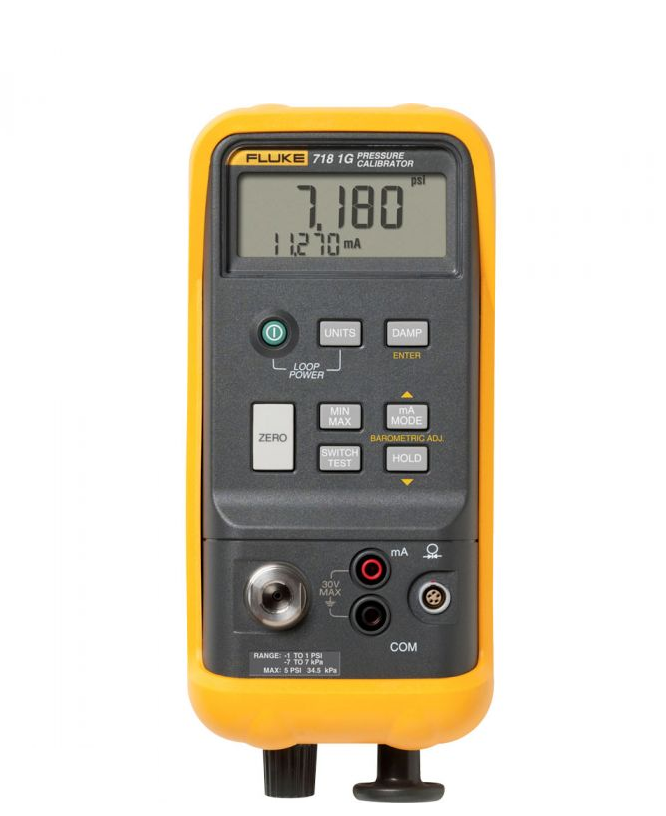

Fluke 718 1G 压力校准器(1psi,68.9m bar,6.89kpa,手动泵)

Measure pressure via a 1/8-inch NPT Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device
Integrated pump
Measure Pressure: (internal sensor)
Accuracy: 0.025% full scale
Note: Dry air, non-corrosives only
Range: -1 PSI to +1 PSI, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa)
Resolution: 0.0001 psi, 0.001 mbar, 0.0001 kPa
Over Pressure: 5x Full Scale
Functions:  zero, min/max, hold, damp
Maximum voltage:  30 volts: Non-operating
Size:  216 mm x 94 mm x 66 mm
Weight : 992 g
Power: 9V battery
Display: LCD, 5 digit
Protective Yellow Holster with test lead storage
Instructions Sheet (14 languages)
Test Leads and Alligator Clip
Two 9V alkaline batteries
NIST - Traceable calibration report and data




Technical Specifications
718 Series
Measure Pressure  (internal sensor)
Accuracy  0.025% full scale
Functions  zero, min/max, hold, damp
Note:  Dry air, non-corrosives only
718 1G
Range:  -1 PSI to +1 PSI, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa)
Resolution:  0.0001 psi, 0.001 mbar, 0.0001 kPa
Over Pressure:  5x Full Scale
Functions:  Zero, Min, Max, Hold, Damp
718 30G
Range:  -12 PSI to 30 PSI, (-850 mbar to 2 bar, -85 to 206.84 kPa)
Resolution:  0.001 psi, 0.1 mbar, 0.01 kPa
Over Pressure:  5x Full Scale
Functions:  Zero, Min, Max, Hold, Damp
718 100G
Range:  -12 PSI to 100 PSI, (-850 mbar to 7 bar, -85 to 689.48 kPa)
Resolution:  0.01 psi, 0.1 mbar, 0.01 kPa
Over Pressure:  2x Full Scale
Functions:  Zero, Min, Max, Hold, Damp
718 300G
Range:  -12 PSI to 300 PSI, (-850 mbar to 20 bar, -85 to 2068.42 kPa )
Resolution:  0.01 psi, 1 mbar, 0.1 kPa
Over Pressure:  375 PSI 25 bar
Functions:  Zero, Min, Max, Hold, Damp
Fluke 718 series via using 700 Series Pressure Modules
Range:  29 pressure modules, 0 – 1 in H20 to 10,000 psi, 2.5 mbar to 700 bar. Over pressure per pressure module specs
Resolution:  Per pressure module specs
Accuracy:  To 0.025 % of full span, per pressure module specs
Functions:  Zero, Min, Max, Hold, Damp
   Note: media compatibility per pressure module specs
Fluke 718 series via built in pump
Range:  -12 PSI or -850 mbar to full scale Supported Pressure Units; psi, in H20 (4 °C), in H20 (20 °C), cm H20 (4 °C), cm H20 (20 °C), bar, mbar, kPa, inHg, mmHg, kg/cm
Loop Power:  Range: 24 V dc
   Accuracy: +/- 10 %
   Note: Drive; 20 mA into 1000 Ω for battery > 6.8V; 700 Ω for battery 5.8 to 6.8 V
mA Measure:  Range: 0 mA to 24 mA
   Resolution: 0.001 mA
   Accuracy: 0.015 % + 1 count


General Specifications
Maximum voltage
   30 volts: Non-operating
   -40 °C to 60 °C
Operating Temperature
   -10 °C to 55° C
Relative Humidity
   95 % (10 °C to 30 °C); 75 % (30 °C to 40 °C); 45 % (40 °C to 50 °C); 35 % (50 °C to 55 °C)
Operating Altitude
   3,000 M max
   1 M drop test
   Random, 2 g, 5 Hz – 500 Hz
   CSA C22.2 No. 1010.1: 1992
   EN50082-1: 1992 and EN55022: 1994 Class B
   216 mm x 94 mm x 66 mm (8.50 in x 3.72 in x 2.60 in)
   992 g (35 oz)
Power, battery life
   9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718
Battery Life
   4 to 20 hours typical, depending on functions used


AC220    AC220 SureGrip™ Alligator Clips

Test Probes
TP220    TP220 SureGrip™ Industrial Test Probes

Differential Pressure Modules
700P00    700P00 Differential Pressure Module
700P01    700P01 Differential Pressure Module
700P02    700P02 Differential Pressure Module
700P03    700P03 Differential Pressure Module
700P04    700P04 Differential Pressure Module

Pumps and Accessories
700PMP    700 PMP Pressure Pump
700HTH-1    Fluke 700HTH-1 Hydraulic Test Hose
700ILF    Fluke 700ILF In-line Filter
700PRV-1    Fluke 700PRV-1 Pressure Relief Valve Kit
700PTP-1    Fluke 700PTP-1 Pneumatic Test Pump
700HTP-2    Fluke 700HTP-2 Hydraulic Test Pump

Differential Pressure Module Wet
700P22    700P22 Differential Pressure Module Wet
700P23    700P23 Differential Pressure Module Wet
700P24    700P24 Differential Pressure Module Wet

Absolute Pressure Modules
700PA3    700PA3 Absolute Pressure Module
700PA4    700PA4 Absolute Pressure Module
700PA5    700PA5 Absolute Pressure Module
700PA6    700PA6 Absolute Pressure Module
700PRV    700PRV Pressure Relief Valve Kit

Cases and Holsters
C101    C101 Hard Case
C550    C550 Tool Bag
C789    C789 Meter & Accessory Case
CXT170    CXT170 Extreme Case

Dual Pressure Modules
700PD2    700PD2 Dual Pressure Module
700PD3    700PD3 Dual Pressure Module
700PD4    700PD4 Dual Pressure Module
700PD5    700PD5 Dual Pressure Module
700PD6    700PD6 Dual Pressure Module
700PD7    700PD7 Dual Pressure Module

Vacuum Pressure Modules
700PV3    700PV3 Vacuum Pressure Module
700PV4    700PV4 Vacuum Pressure Module

Test Leads
TL220    TL220 SureGrip™ Industrial Test Lead Kit
TL221    TL221 SureGripTM Test Lead Extension Kit
TL223    TL223 Electrical Test Lead Set
TL224    TL224 SureGripTM Insulated Test Leads
TL71    TL71 Premium Test Lead Set
TL75    TL75 Hard Point™ Test Lead Set
