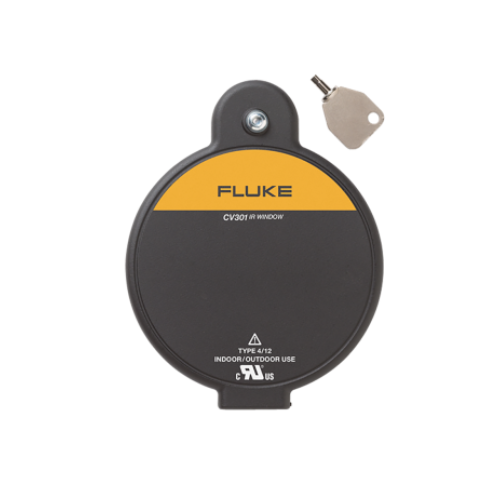

FLUKE FLUKE-CV301 红外窗口 (75 mm)

Size: 75 mm (3 in)

Voltage range: Any

NEMA environment type: Type 4/12 (indoor/outdoor)

AutoGround™: Yes

ClirVu® optic: Yes

Operating temperature: -40°C to +232°C (-40° F to +450°F) and +260°C (500°F) intermittent

Compatible with all Fluke cameras: Yes

Jam nut locking system: Yes

Cover and fastener permanently attached: Yes

Single-hole install: Yes

Hand turn and security key door latch options: Yes

Visual inspection and fusion capable: Yes

Short/Mid/Long-wave IR and UV capable: Yes

Ratings and Testing Arc-tested (IEEE C37.20.7): 63 kA for 30 cycles @ 60 Hz at KEMA

CSA type rating: Type 4

IP rating: IP67 at TUV

Install

Actual mounting hole diameter required: 89.89 mm (3.539 in)

Overall window height: 141.5 mm (5.57 in)

Overall window width: 111.5 mm (4.39 in)

Overall window thickness: 16.2 mm (0.64 in)

Door latch: Security Key

Optics

Optic insert diameter: 75 mm (2.96 in)

Viewing aperture diameter: 67.95 mm (2.675 in)

Viewing aperture area: 3626 mm2 (5.62 in2)

Thickness: 2 mm (0.08 in)
