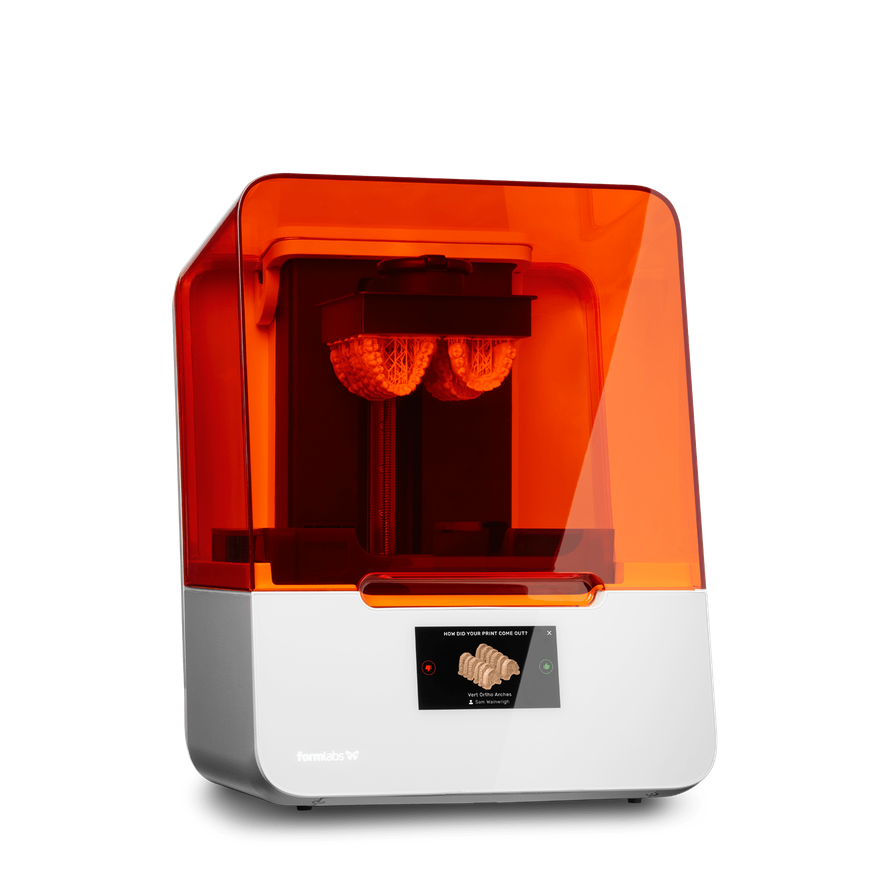

FORMLABS PKG-F3B-COMPLETE Form 3B 3D完整包装 (打印机, RT LT, BP, FK ,牙齿和医疗用品的制造)

Technology: Low Force Stereolithography (LFS)™

XY Resolution: 25 microns

Laser Spot Size: 85 microns

Laser Power: One 250 mW laser

Build Volume (W x D x H):

14.5 × 14.5 × 18.5 cm

5.7 × 5.7 × 7.3 in

Layer Thickness:

25 – 300 microns

.001 – .012 in

Biocompatible Materials: Yes


Printing Properties

Technology: Low Force Stereolithography (LFS)™

Resin Fill System: Automated

Build Volume (W x D x H):

14.5 × 14.5 × 18.5 cm

5.7 × 5.7 × 7.3 in

Layer Thickness (Axis Resolution):

25 – 300 microns

.001 – .012 in

XY Resolution:

25 microns

0.001 in

Laser Spot Size:

85 microns

0.0033 in

Resin Cartridges: 1

Biocompatible Materials: Yes

Supports:

Auto-Generated

Light-Touch Removal


Hardware

Minimum Access Dimensions (W × D × H):

40.5 × 53 × 78 cm

15.9 × 20.9 × 30.7 in

Printer Dimensions (W × D × H):

40.5 × 37.5 × 53 cm

15.9 × 14.8 × 20.9 in

Weight:

17.5 kg

38.5 lbs

Operating Temperature:

Auto-heats to 35 °C

Auto-heats to 95 °F

Temperature Control: Air-heated print chamber

Power Requirements:

100–240 VAC

2.5 A

50/60 Hz

220 W


Laser Specifications:

1 Light Processing Unit

EN 60825-1:2007 certified

Class 1 Laser Product

405 nm wavelength

250 mW power

85 micron (0.0033 in) laser spot

Connectivity:

Wi-Fi (2.4, 5 GHz)

Ethernet (1000 Mbit)

USB 2.0

Printer Control:

5.5" interactive touchscreen

1280 × 720 resolution

Alerts

Touchscreen alerts

SMS/email via Dashboard

Two LED status indicators

Speaker for audio alerts


Includes:

1 Form 3B 3D Printer

1 Resin Tank*

1 Build Platform

1 Finish Kit

PreForm Software

Plus:

1 Form Wash

1 Form Cure

1 L Model Resin

Dental Service Plan

* This package includes Form 3 Resin Tank V1. This resin tank is incompatible with Rigid, Elastic, or Grey Pro Resins. To print with these resins, use Form 3 Resin Tank V2.
