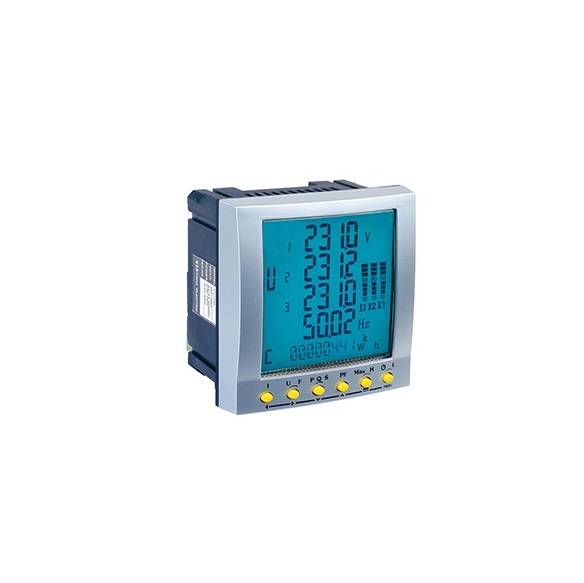

GFUVE FU2200 RS485 端口三相停止数字功率计

Power supply (AC/DC): AC85-265V / DC85-330V, DC18-90V (optional)

Power consumption: <4VA

Measurement parameters: Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF; Active Power(W); Reactive Power(Q) ; Apparent Power(S), 3rd-19th harmonics


        Total harmonics ratio of phase-voltage

        Total harmonics ratio of current

        3rd-19th harmonics ratio of Phase-voltage (RS485 output)

        3rd-19th harmonics ration of current (RS485 output)

Maximum value:

        Max. value for voltage/current

        Max. value for active power

        Max. value for reactive power

        Max. value for apparent power


        Forward active power energy

        Reverse active power energy

        Forward active power energy

        Reverse reactive power energy

Measuring range: 30-600V, 0-6A, 45-65Hz, -1 ~ 0 ~ 1

Measuring accuracy:

        Frequency: 0.1%

        Electric energy: 0.5%, 1.0%

        Voltage: 0.2%±0.1V

        Current: 0.2%±0.001A

        Power: 0.5% ±0.4W

        Power factor: 0.5% ±0.001

Display: Wide screen angle; Light blue back-lit LCD display; 5 display figures; 6 operation keys.

Communication: RS-485 interface port support, 32 (128) Networking, ModBus-RTU communication protocol


        Measuring system: 3P4W/3P3W etc.

        Transformation ratio : PT,CT.


        Address: 1-247; Baud: 1200-19200; Parity bit: N/E/O

        Energy: reset

Energy pulse (expansion): FM-E2 provides active & reactive energy pulse output. 6 pulse parameters can be choose. Range: 0.1-10000kWh/kvarh; Dry contact output (1AX100V).

Data collection (expansion): Each FM-K2 module can collect 2-ways dry contact counting

Control (expansion module): Each FM-K2 provides 2 relay contact outputs, which can be controlled by communication or the measured parameters.

Analog output (expansion module): Each FM-A20 module provides 2 ways of DC 4-20mA outputs, the function-relations can be set according to the measured parameters.

Connection mode 3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P2W, 1P3W

Mechanical parameters

Dimensions (mm)

        Mounting panel: 96x96

        Thickness: 20

        Depth: 60 (without expansion module)

        80 (without expansion module)

Mounting: Panel mounting

Trepanning: 92x92mm

Environmental conditions

Temperature: -25 to +50°C

Humidity: 20%-95%RH, Without condensation
