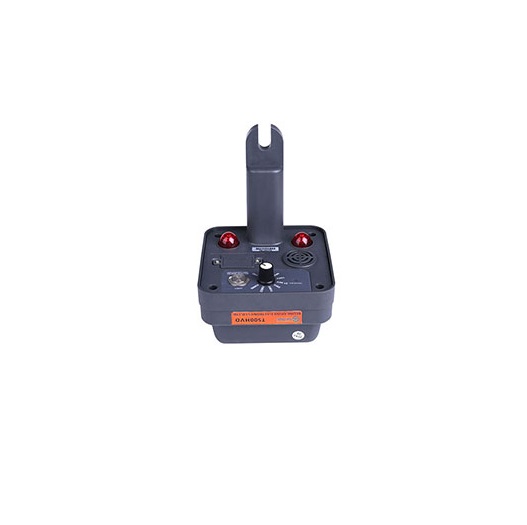

GFUVE T500HVD 非接触AC高压测试仪,有带电操作杆 (500kV; 20cm)
制造商: GFUVE Model: T500HVD 来源: China 保障: 12 Month - 报价要求
- 联系
ELECTRICAL PARAMETERS
Detection Frequency: 40-70Hz
Ranges: 380V, 6kV, 10kV, 27.5kV, 35kV, 110kV, 220kV, 500kV
Detection: Selection range is detected at approximately 20cm
from the voltage, Greater detection distances can be obtained at lower voltage
positions; detected only 5cm in 380V.
Power Source: 9V cell batteries(6F22)
Self Test: User selectable
Indicators: Bright red LED and audible buzzer
Flashlight: Yes
Sealing class: IP65
Consumption: Max: 65mA
Standard: EN 61326-1 CISPR 11
EN 61000-4-2
EN 61000-4-3
EN 61000-4-8
MECHANICAL PARAMETERS
Dimension (L×W×H) (mm): 115x115x169
Weight (g): 365(with battery)
ENVIRONMENTAL CONDITIONS
Operating temperature: -15°C ~ 55°C
Storage temperature: -20°C ~ 65°C
Relative humidity: 0%-95% RH
