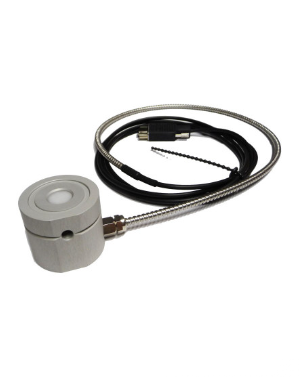

Gigahertz-Optik UV-3718-4 高灵敏度宽带紫外辐照探测器 (ITT connector)
制造商: Gigahertz-Optik Model: UV-3718-4 P/N: 15297129 来源: Germany - 联系
Spectral responsivity: UV-C 254 nm
Typical responsivity: 2 nA/(W/m²)
Max. signal current: 50 µA
Input optics: 11 mm Ø diffusor window
Input optics: Cosine F.O.V
Housing: 37 mm Ø, 32 mm height
Mounting: side M6 thread hole
Connector: coaxial cable 2 m Long, with ITT connector (UV-3718-4). Flexible metal tube
Temperature range: 5 - 40°C
min. signal current: depends on optometer
