HAKKO FR-301 W / 3芯电缆,但无插头携带式拆焊工具(100W,220V,50 / 60Hz)

  • 制造商: HAKKO
    Model: FR-301
    P/N: FR301-16
    来源: Japan
    保障: 12 month
    • 报价要求 报价要求
  • Price (exclude tax) 7,356,750 VND
    Price (include tax) 8,092,425 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Power consumption:

220V 100W (50/60Hz)

Temperature range: 350 to 500ºC

Temperature stability: ±5ºC at idle temperature

・ Station

Output voltage: AC 29V

Vacuum generator: Vacuum pump, double cylinder type

Vacuum pressure: 80kPa (600mmHg)

Suction flow: 15L/min.

Dimensions: 166(W)×137(H)×264(D)mm

Weight: 5.7kg

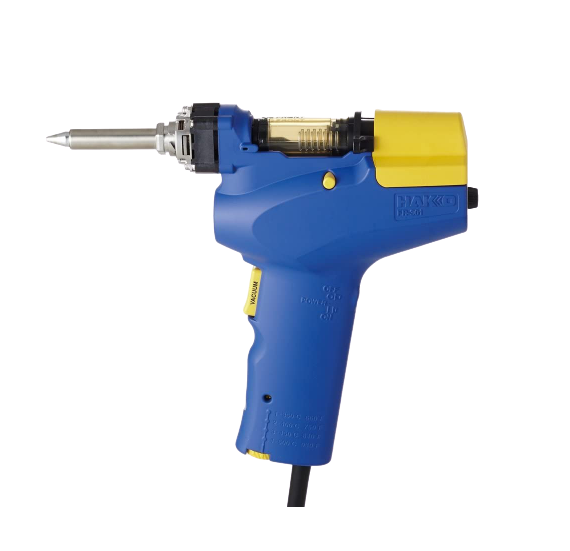

・Desoldering Tool

Power consumption: 300W (29V)

Heating element: Composite heater

Standard nozzle: Φ1.0mm type (No.N60-02)

Cord length: 1.2m

Total length: 183mm (with Φ1.0mm nozzle)

Weight: 270g (with Φ1.0mm nozzle)

Packing list: Unit, Pre-filter, Ceramic paper filter (L; 2pcs), Nozzle wrench, Iron holder (simple type), Cleaning pin for heating core, Cleaning pin for Φ1 mm nozzle, Instruction manual

User can choose power based on your need:

100V 98W (50/60Hz)

110V 122W (50/60Hz)

120V 140W (50/60Hz)

220V 100W (50/60Hz)

230V 110W (50/60Hz)

240V 120W (50/60Hz)
