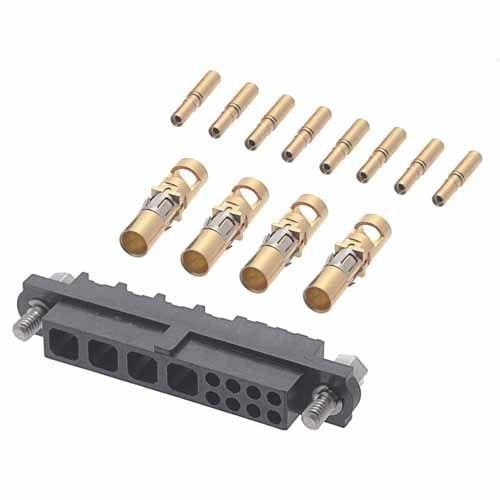

Harwin M80-4C10805F1-04-325-00-000 Power to the Board FEMALE CRIMP/SCREW 4 POWER+8 SIGNAL
制造商: Harwin Model: M80-4C10805F1-04-325-00-000 - 联系
Pitch: 4 mm, 2 mm
Unit Weight: 3.498 g
REACH - SVHC: Details
Housing Color: Black
Contact Gender: Socket (Female)
Current Rating: 20 A, 3 A
Mounting Style: Cable Mount / Free Hanging
Voltage Rating: 800 V
Wire Gauge Max: 24 AWG
Wire Gauge Min: 28 AWG
Contact Plating: Gold
Contact Material: Brass
Housing Material: Polyphenylene Sulfide (PPS)
Termination Style: Crimp
Number of Positions: 4 Power, 8 Signal
