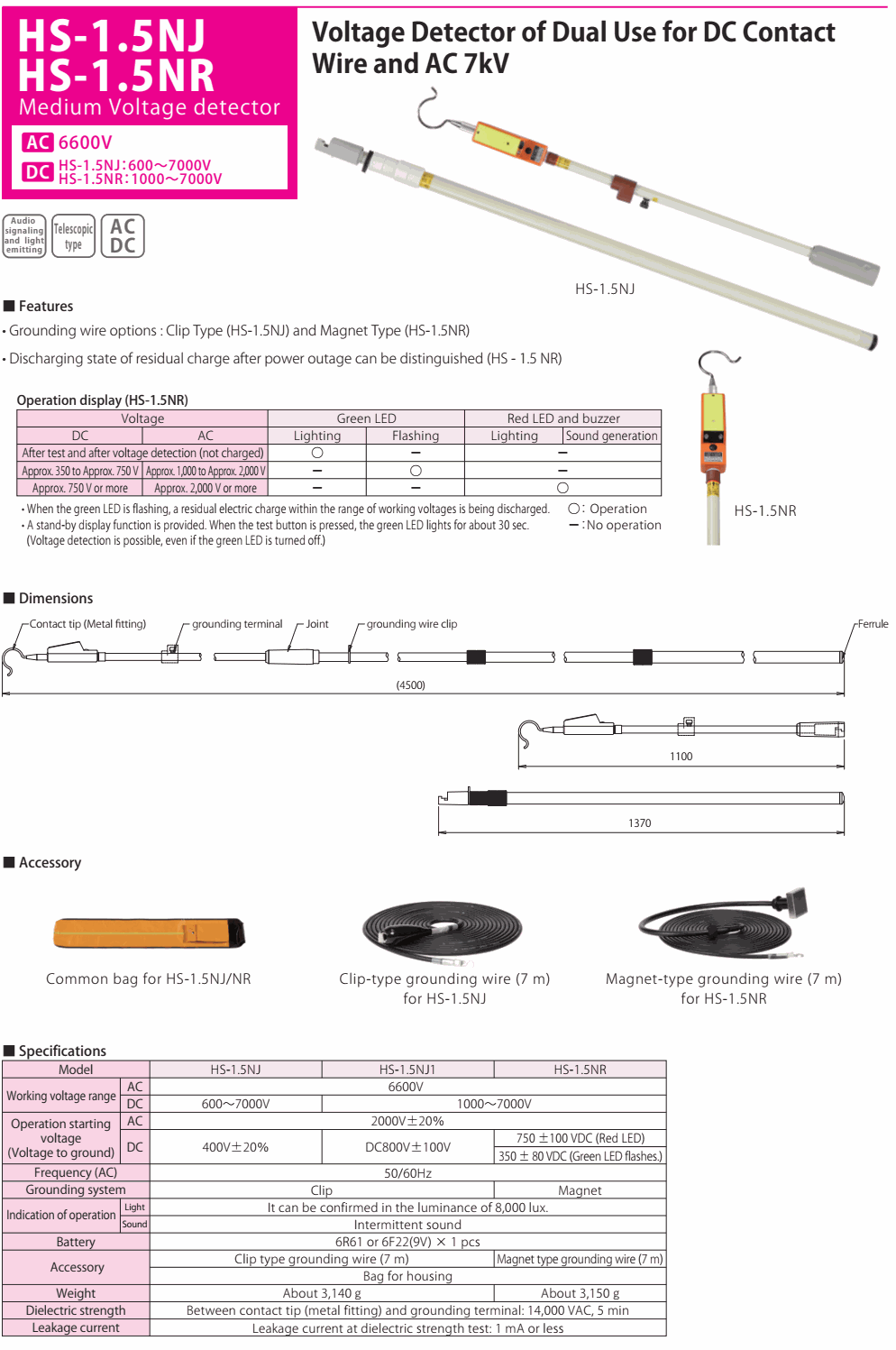

HASEGAWA HS-1.5NR 高/低压交/直流两用电压检测仪 (AC 6600V; DC 1000～7000V)

■ Specifications

Working voltage range:

- AC: 6600V

- DC: 1000～7000V

Operation starting voltage (Voltage to ground):

- AC: 2000V±20％

- DC: 750 ±100 VDC (Red LED)/350 ± 80 VDC (Green LED flashes.)

Frequency (AC): 50/60Hz

Grounding system: Magnet

Indication of operation:

- Light: It can be confirmed in the luminance of 8,000 lux

- Sound: Intermittent sound

Battery: 6R61 or 6F22(9V) × 1 pcs

Weight: About 3,150 g

Dielectric strength: Between contact tip (metal fitting) and grounding terminal: 14,000 VAC, 5 min

Leakage current: Leakage current at dielectric strength test: 1 mA or less

■ Accessory: Common bag, Magnet-type grounding wire (7 m)

■ Features

• Grounding wire options : Magnet Type

• Discharging state of residual charge after power outage can be distinguished
