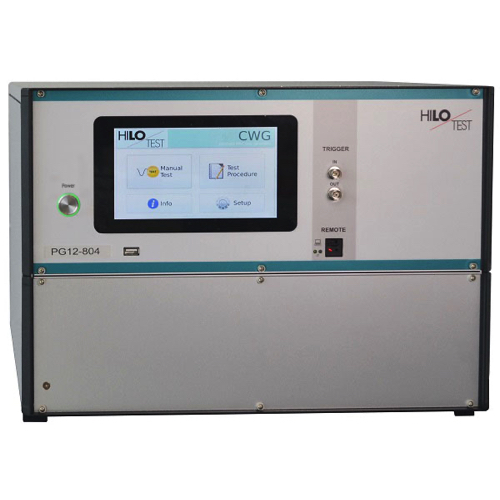

HILO-test PG 12-400 Combination Wave Generator (0.2 – 12 kV ± 5 %; 1.2 / 50 µs ± 30/20 %)

Mainframe

Microprocessor controlled touch panel: 7”, capacitive

Optical Ethernet Interface for remote control of the generator: optional

Interface for saving reports: USB

External Trigger input / output: Switch / 10 V

Connector for external safety interlock loop and external red and green warning lamps (acc. to VDE 0104): 24 V=, 40 mA

Mains power: 230V, 50/60 Hz

Dimensions (desk top case W * H * D): 450 * 330 * 500 mm³

Weight: 25 kg

Surge (acc. to IEC 60060-1)

Test voltage (open circuit condition): 0.2 – 12 kV ± 5 %

Waveform (acc. to IEC 60060-1): 1.2 / 50 µs ± 30/20 %

Polarity of output voltage/current, selectable: pos/neg/alt

Maximum stored energy: 360 Joule

Energy storage capacitor (Cs): 5 µF

Resistor in series to the output (Rs): 12Ω (opt. 40Ω / 200Ω / 500Ω)

Optional other serial resistors (Rs) available

Trigger

a) manual: Push button

b) external: Trigger input Switch

c) internal, automatic, adjustable via test procedure: 1 - 1000 pulses

Repetition time: 10 - 1000 s

Mains synchronous triggering, phase shifting, digitally selectable: 0 - 360 °, Step 1°

Display of peak values of pulse voltage and Ixt: built-in

Current Sense: built-in

Impulse voltage divider, built-in: ü = 1000 : 1 ± 5 %

Accessories: power cable, turn key, HV-cable (1m), instruction manual
