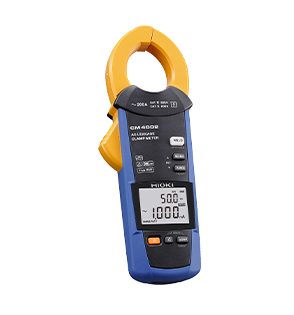

HIOKI CM4002 AC漏电钳形表 (6.000 mA~200A)

AC Current range: 6.000 mA, 60.00 mA, 600.0 mA, 6.000 A, 60.00 A, 200.0 A, 6 ranges, True RMS

Basic accuracy: 45 Hz - 400 Hz: ±1.0% rdg ±5 dgt (6.000 mA to 6.000 A), ±1.5% rdg ±5 dgt (60.00 A, 200.0 A)

Basic accuracy: 15 Hz - 45 Hz, 400 Hz - 2 kHz: ±2.0% rdg ±5 dgt

Defined accuracy range: 0.060 mA to 200.0 A

AC Voltage range N/A

Frequency range 15.0 Hz to 2000 Hz

Crest factor: 3 (other than 200.0　A range), 1.5 (200.0　A range)

Filter function Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB)

Output function N/A

Other functions: Max/ Min/ AVG/ PEAK MAX/ PEAK MIN value display, Display value hold and auto hold; Backlight, Auto power save, Buzzer sound, Event count display, Comparator, Simple event recording, Rush current measurement

Display Display refresh rate: 5 times/s

Power supply: AA-size alkaline battery (LR6) × 2; Continuous operating time: 48 hr. (without Z3210 installed), 30 hr. (with Z3210 installed and using wireless communications)

Core jaw diameter: φ 40 mm (1.57 in.)

Dimensions and mass: 64 mm (2.52 in) W × 233 mm (9.17 in) H × 37 mm (1.46 in) D, 400 g (14.1 oz.)

Accessories: Carrying case C0203 × 1, Instruction manual × 1, Operating Precautions × 1, AA-size alkaline battery (LR6) × 2
