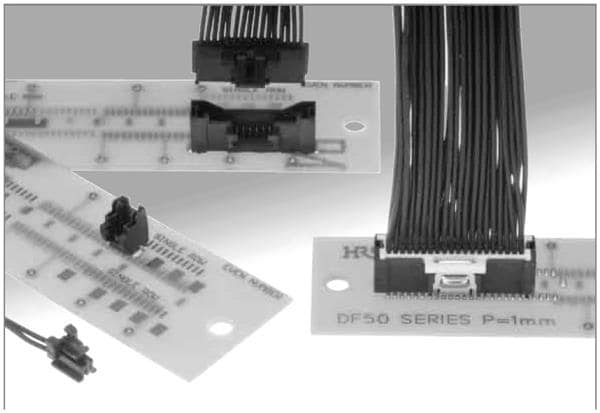

Hirose Electric DF50-30DP-1V(52) 带罩 30P 1.0MM 间距 HDR 直插 SMT
制造商: Hirose Electric Model: DF50-30DP-1V(52) - 联系
Pitch: 1 mm (0.039 in)
Unit Weight: 648 mg
Housing Color: Black
Contact Gender: Pin (Male)
Current Rating: 1 A
Mounting Angle: Straight
Mounting Style: SMD/SMT
Number of Rows: 2 Row
Voltage Rating: 100 V
Contact Plating: Gold
Contact Material: Brass
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder
Number of Positions: 30 Position
Insulation Resistance: 500 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 35 C
