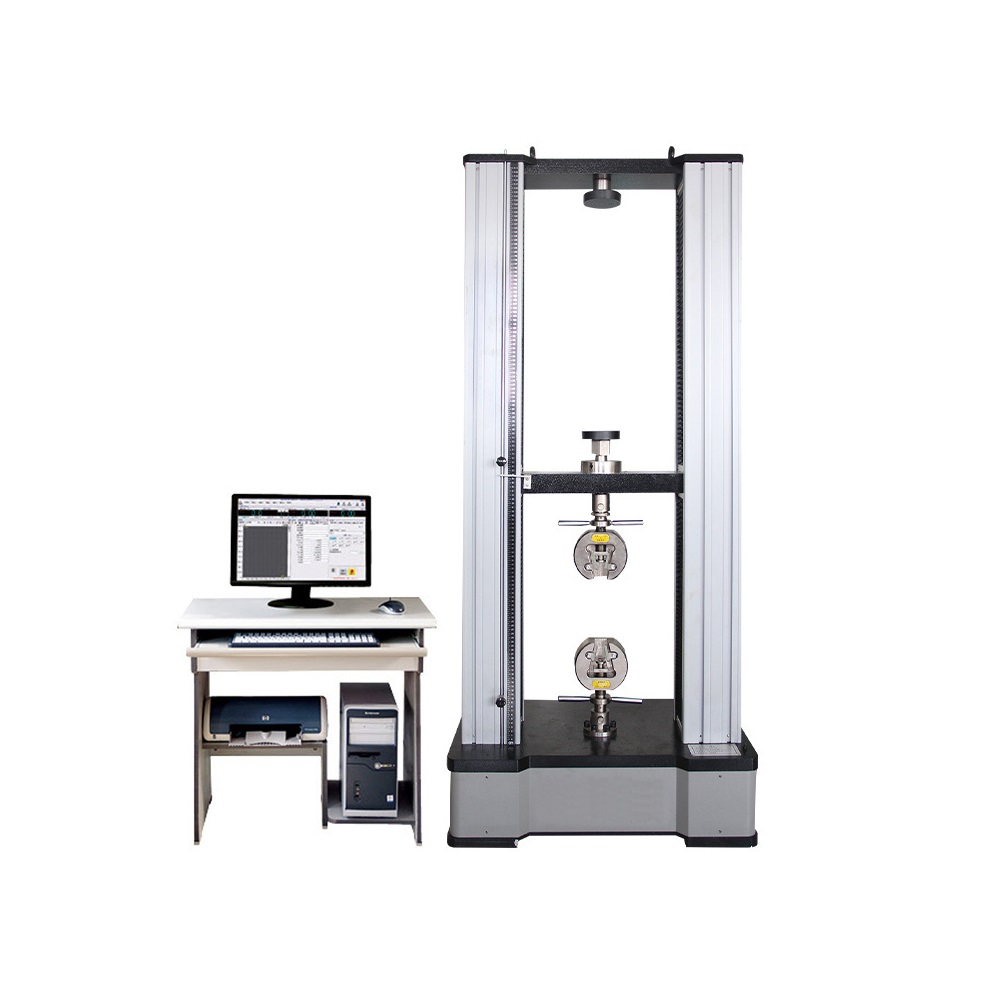

HST WDW-50ZY 瓷砖石膏板电子弯曲试验机 (50kN)

Application: used to test the bending resistance and bending resistance of various ceramic tiles, asbestos cement wave, asbestos cement slab, straw board, gypsum board, lightweight insulation material board, wood board, and various non-metal composite boards and research.


Max. Load(kN): 50

Resolution of deformation: 0.04um

Accuracy of displacement: Within±0.5%of indicating load

Resolution of displacement: 0.01mm

Test speed(mm/min): 0.05-500 stepless arbitrary setting

Speed accuracy: within ±1% / ±0.5% of set speed

E-Tensile space(mm): Customized

E-Compression space(mm): Customized

D-Test width(mm): 500 (can be customized)

F-Beam travel distance(mm): 1050

H-Workbench thickness(mm): 58

I-Base height(mm): 435

Power supply: AC220V±10%,50Hz/60Hz (can be customized)
