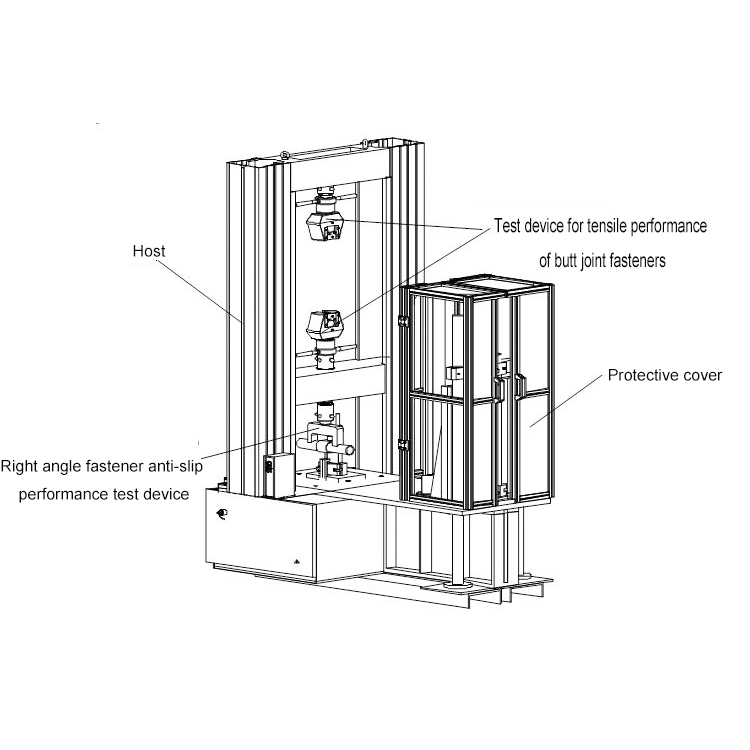

HST WKW-150 电脑控制碗扣式脚手架扣件试验机 (150kN, AC220V)

Testing machine grade: Level 1

Maximum: 150kN

Measuring range of test force: 2% -100%

Test force accuracy: Better than ± 1%

Displacement resolution: 0.01mm

Displacement measurement accuracy: Better than ± 1%

Test speed range: 0.01-300mm / min stepless speed regulation

Stretching space (without fixture): 600mm (conventional, can also be customized according to user needs)

Compressed space: 600mm (conventional, can also be customized according to user needs)

Column spacing: 400mm (conventional, can also be customized according to user needs)

Speed accuracy: Better than ± 1% of indicated value

Motor Power: 1KW

Power supply: AC220V ± 10%, 50Hz, single phase

Working environment: Room temperature—35 ℃, relative humidity does not exceed 80%
