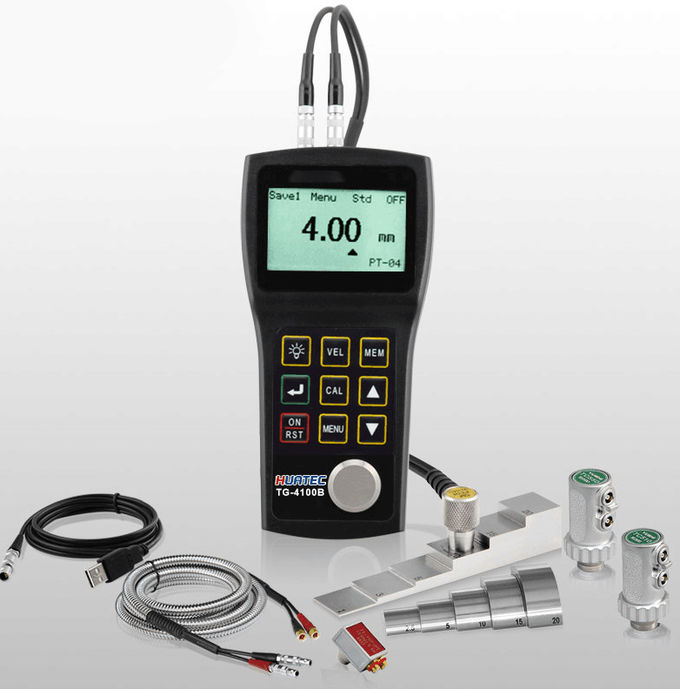

HUATEC TG4100B 高精度数字超声波测厚仪 (0,8 mm- 300,0 mm)

Display 128X64 Pixel LCD with backlight

Measuring range 0.8 mm- 300.0 mm in steel depending on the probe

Special request can reach measuring range up to 500mm

Tolerance +/-0.05 mm in steel

Display resolution 0.1 mm (TG4000B)/0.01mm (TG4100B)

Built-in standard block 4.00 mm

Memory 500 datas in 5 groups, memory does not lose after powering off

Velocity range 1000-9999 m/s

Power 2 pcs 1.2 V AAA batteries

Outside dimension 149X73X32 mm

Net Weight 160 g

STANDARD DELIVERY

TG4100B main unit

Hard carrying case

Couplant bottle

Standard 8 mm, 5 MHz probe PT-08 with cable

OPTIONAL ACCESSORIES

4 steps steel test block

7 steps metrics steel test block

5 MHz, 4 mm contact probe

10 MHz, 4 mm, contact probe

5 MHz high temp. probe

Probe cables

Water proof housing

Dataview CD and communication cable optional

PROBE OPTIONAL

Probe model Frequency Contact area Testing Range (steel) Contact Temp.

Cast iron probe ZT-12 2MHz 16.2mm 4.0-300.0mm --10--60℃

Standard probe PT-12 5MHz 12mm 1.0-200.0mm --10--60℃

Standard probe PT-08 5MHz 10mm 0.8-100.0mm --10--60℃

Small probe PT-06 7.5MHz 7.6mm 0.8-30.0mm --10--60℃

Small probe PT-04 10MHz 5mm 0.8-20.0mm --10--60℃

High temp. probe 5MHz 14mm 4.0-80.0mm up to 300℃
