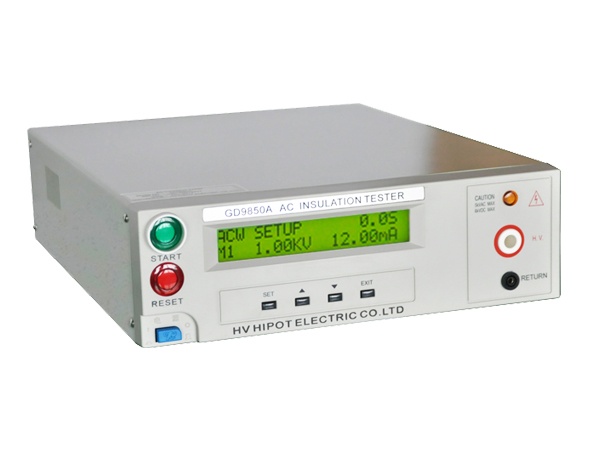

HV HIPOT GD9850A AC/DC 绝缘电阻测试仪

Input:

• Voltage: 110V or 220VAC, ±10%, single phase

• Frequency: 47-63Hz

• Fuse: 4A/250VAC

AC withstand test: Rated output: 5kV AC

Output frequency: 50/60Hz, for option

Output waveform: Sine wave, 1.3

Upper limit setting of leak current:

• Range: 0.01-12.00mA

• Resolution: 0.01mA

• Accuracy: ±(2% of setting value+2digit)

Lower limit setting of leak current:

• Range: 0.00-12.00mA

• Resolution: 0.01mA

• Accuracy: ±(2% of setting value+2digit)

DC withstand voltage test: Rated output: 6KV DC

Upper limit setting of leak current:

• Range: 0.01-12.00mA

• Resolution: 0.01mA

• Accuracy: ±(2% of setting value+2digit)

Lower limit setting of leak current:

• Range: 0.00-12.00mA

• Resolution: 0.01mA

• Accuracy: ±(2% of setting value+2digit)

Voltage setting:

• Range:  0-5000V AC; 0-6000V DC

• Resolution: 1V

• Accuracy: ±(2% of setting value+5V)

Voltage stability: ±(1% of setting value+5V)

Slow rising time:

• Range: 0.1-999.9S

• Resolution: 0.1S

• Accuracy: ±(0.1% of setting value+0.05S)

Test time:

• Range: 0.5-999.9S, 0 is continuous testing

• Resolution: 0.1S

• Accuracy: ±(0.1% of setting value+0.05 S)

Arc detection: Range: class 1 to class 9 can be set, 0 is non-detection arc status

Voltage display:

• Range: 0-5.00KV AC; 0-6.00KV DC

• Resolution: 0.01KV

• Accuracy: ±(3% of display value+3digit)

Current display:

• Range: 0.01-12.00mA AC; 0.01-6.00mA DC

• Resolution: 0.01mA

• Accuracy: ±(2% of display value+3digit)

Insulation resistance test: Rated output: 1000V DC

Voltage setting:

• Range: 500 - 1000V DC

• Resolution: 100V

• Accuracy: ±(2% of setting value+5V)

Voltage display:

• Range: 0.50KV – 1.00KV DC

• Resolution: 0.01KV

• Accuracy: ±2% of display value

Resistance display:

• Range: 1.000 - 2000MΩ

• Accuracy: ±(5% of display value+3digit) (1-1000MΩ); ±(10% of display value+3digit)(1000-2000MΩ)

Upper limit setting of resistance: 0-2000MΩ, 0 is non determination

Lower limit setting of resistance: 1.0-999.9MΩ

Delay time of determination:

• Range: 0.8 - 999.9 S, 0 is continuous determination

• Resolution: 0.1S

• Accuracy: ±(0.1% of display value+0.05 S)

Dimension: 326*102*380mm

Weight: 9kg
