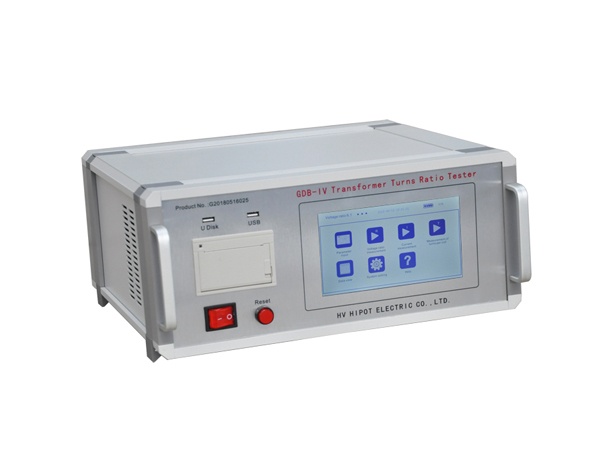

HV HIPOT GDB-IV 变压器比例测试仪

Specifications

Voltage ratio test range: 1-10000

Group test range: 0-11

Voltage ratio test accuracy

• 1-500: 0.1% High voltage

• 500-2000: 0.2% High voltage

• 2000-10000: 0.5% High voltage

• 1-100: 0.2% Low voltage

• 100-500: 0.5% Low voltage

Voltage ratio resolution: 0.0001

Angle accuracy: 0.1°

Angle resolution: 0.01°

Accuracy of current measurement: 1% FS+2 digits

Power Input: Lithium battery 12V 10 Ah

Dimension: 387*175*379 mm

Weight: 9 kg

Operating temperature: -20℃-40℃

Relative moisture: ≤85%, no condensation
