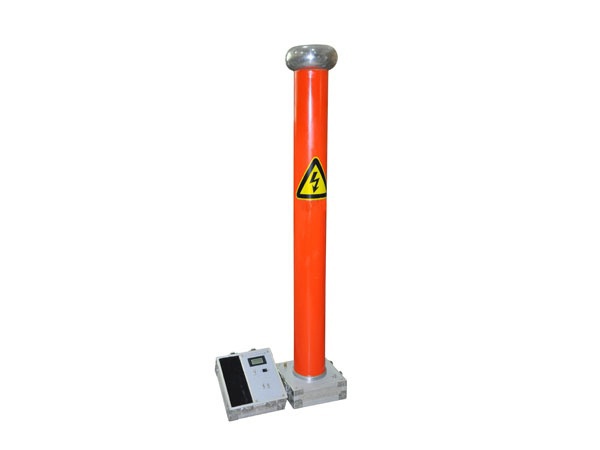

HV HIPOT GDFR-R300 高压直流电压表分压器 (300kV)

Voltage(kV): 300

DC frequency(Hz): <2

Accuracy: DC: 1.5%

Accuracy for option (G type): DC:1.0%

Accuracy for option (H type): DC:0.5%

Impedance (MΩ): 3500

Capacitance (pF): 120-500

Voltage ratio: 1000:1 or 10000:1(or customized)

Dimension (mm): 260×260

Cable impedance(Ω): 50 / 75

Range:

1. Low range: 0-200kV

2. High range: 200kV-rated voltage

Cable length(m): 8

Weight(kg): 23.5

Packing Medium: Dry type high polymer material

Operation temperature: 0℃-45℃

Relative humidity: <85%RH,no condensation

Altitude: <1500m(or customized)

Use condition: Indoor use or outdoor use in Sunny day
