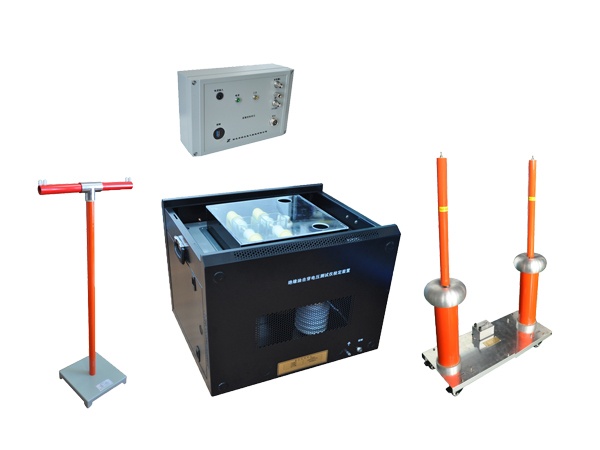

HV HIPOT GDJY-100B 绝缘油测试仪的校准器 (100kVRMS)

Measurement error of 10kV~100kV voltage divider: less than 0.2% RD + 0.05kV

Measurement error of boost rate: less than 0.5%

Time reading resolution: 40.96us

The highest measurement voltage: 100kVRMS (-50 kV to 50kV, without high-voltage switching unit)

The highest breakdown voltage: 80kV

Capacitance value of voltage divider: 10pF, maximum measurement voltage: 50kV, voltage divider ratio 5000: 1

The maximum input voltage of high-voltage switching unit is allowed: 80kV

The computer of the auxiliary control software system must meet the following minimum configuration:

a. CPU frequency> 1.5GHz

b. System memory> 1GB

c. The operating system of the computer is Windows 7 (32Bit)

d. Computer's hard disk> 40G

e. USB2.0
