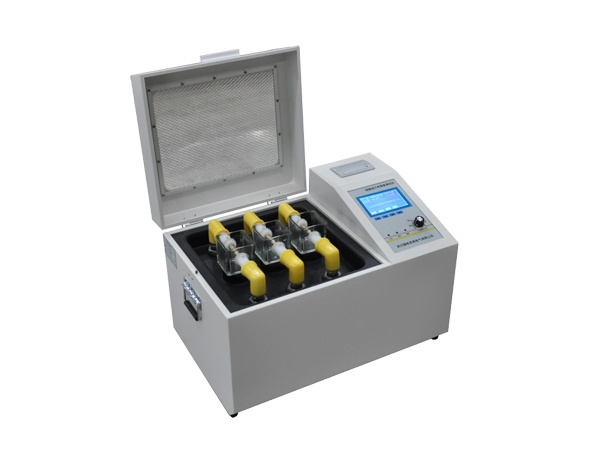

HV HIPOT GDOT-3C 绝缘油电分质检测仪 (0~80kV; 1.5kVA)

Power supply: AC220V±10%, 50Hz

Output voltage: 0~80kV (Selectable)

Capacity: 1.5kVA

Power consumption: <200W

Speed of voltage increase: 2.0kV/s, 2.5kV/s, 3.0kV/s, 3.5kV/s (Selectable)  Error: 0.2kV/s

Voltage measuring accuracy: ±(2%+2 digits)

Waveform distortion: <1%

Display mode: Large LCD

Electrode gap: Standard 2.5mm

Dimension: (L)630*(W)410*(H)400mm

Weight: 42.5kg

Operating environment:

Temperature: 0℃-40℃

Humidity: <85%
