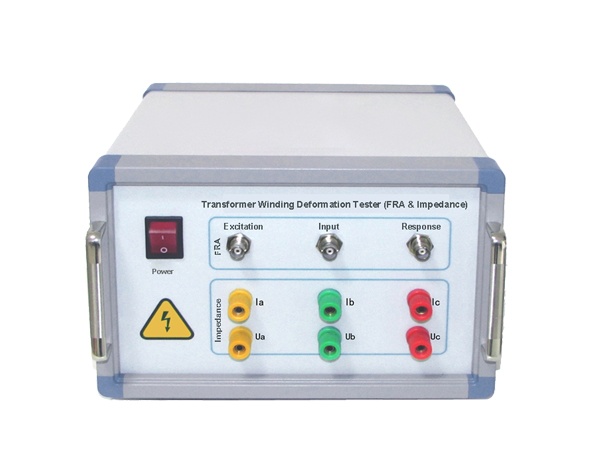

HV HIPOT GDRB-F 变压器线圈变样检测仪 (SFRA & Impedance Method)

Test speed: 1~3mins (for single phase winding)

Output voltage: Vpp-25V, adjusting automatically in test

Output impedance: 50Ω

Input impedance: 1MΩ (the response channel is built with 50Ω matching resistance)

Frequency sweep scope: 10Hz~2MHz (standard); 10Hz~30MHz (optional)

Frequency accuracy: 0.001%

Frequency sweep manner: Linear or logarithmic, frequency scan interval and number of sweep points are set freely.

Curve display: Amplitude-frequency curve (phase-frequency curve, optional)

Width of measuring dynamic range: -100dB~20dB

Supply voltage: AC100-240V, 0-400Hz

Weight: 3kg
