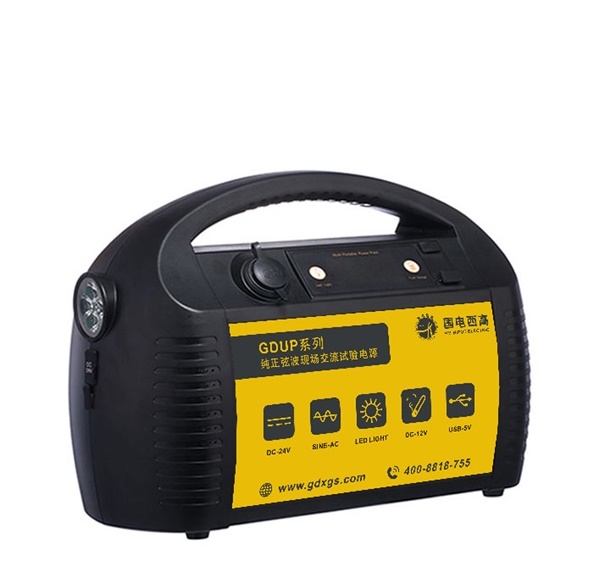

HV HIPOT GDUP-1000 纯正弦波 AC测试电源 (2000W; 25.9V; 41.6AH)

Continuous output power: 1000W

Peak power: 2000W

Output voltage: AC Pure sine wave 220V/50HZ or  AC  110V/60HZ , DC  12V10A  5V2A      24V20A

Battery model: 18650-16P7S( 3.7V 3300mAh)

Battery capacity: 25.9V   41.6AH

Lifetime: 70%@1000  cycle

Charging time: 8 ~ 9 H(29.4V5A charger)

5 ~ 6 H(29.4V8A charger)

Charging voltage & current: DC10~40V 8A, (Solar wind energy charging, car charging)

Protection function: Overvoltage, over temperature, overload, AC short circuit protection, self-recovery

Working environment: -20℃  ~ 60℃

LED light: LED 1W

Cooling method: Fan forced cooling

Size(mm): 345*246*172(L*H*W)

Housing material: UL94-V0 PC+ABS

Weight: 8.0 kg
